This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M54D1G1664A-3BKG |
|---|---|
| Datasheet | M54D1G1664A-3BKG M54D1G1664A-1.8BKG Datasheet (PDF) |
| File Size | 5.12 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
|
|

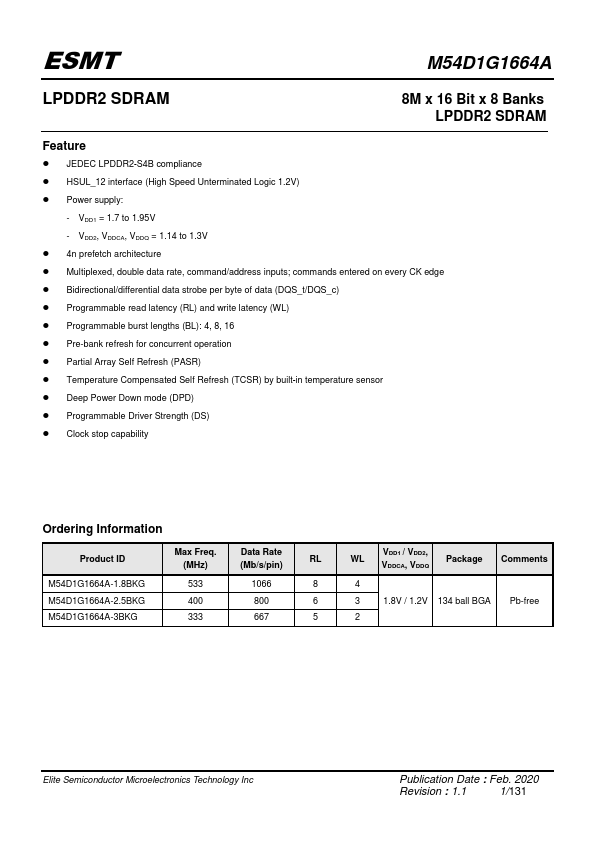

ESMT M54D1G1664A LPDDR2 SDRAM 8M x 16 Bit x 8 Banks LPDDR2 SDRAM.
See all ESMT (Elite Semiconductor Microelectronics Technology) datasheets
| Part Number | Description |
|---|---|
| M54D1G1664A-1.8BKG | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-1.8BKG2G | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-2.5BKG | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-2.5BKG2G | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G3232A-1.8BKG | 4M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G3232A-1.8BKG2G | 4M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G3232A-2.5BKG | 4M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G3232A-2.5BKG2G | 4M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G3232A-3BKG | 4M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D2G16128A | 16M x 16 Bit x 8 Banks LPDDR2 SDRAM |
