Datasheet Details
| Part number | M54D2G3264A-1.8BKG |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 5.06 MB |
| Description | 8M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| Datasheet | M54D2G3264A-1.8BKG-ESMT.pdf |
|
|

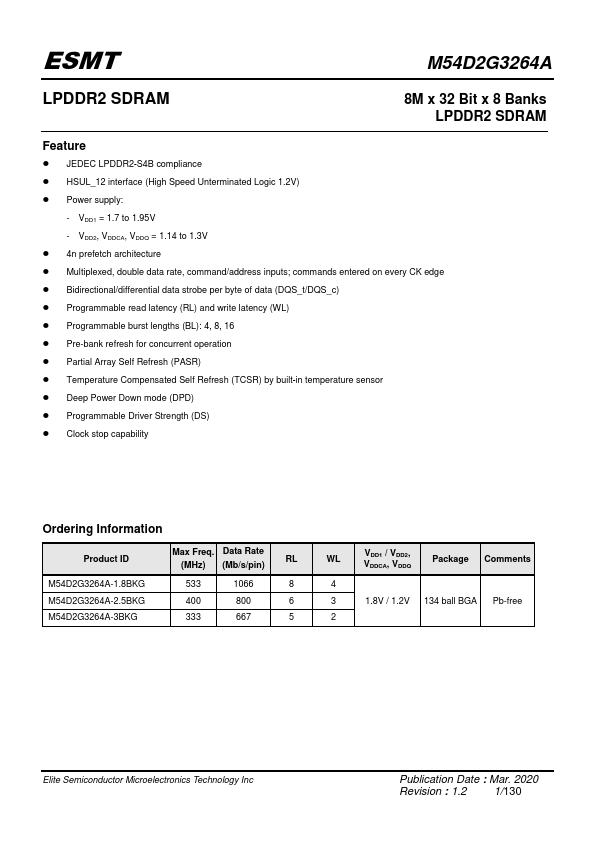

Overview: ESMT M54D2G3264A LPDDR2 SDRAM 8M x 32 Bit x 8 Banks LPDDR2 SDRAM Feature JEDEC LPDDR2‐S4B compliance HSUL_12 interface (High Speed Unterminated Logic 1.2V) Power supply: - VDD1 = 1.7 to 1.
| Part number | M54D2G3264A-1.8BKG |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 5.06 MB |
| Description | 8M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| Datasheet | M54D2G3264A-1.8BKG-ESMT.pdf |
|
|
|
| Part Number | Description |
|---|---|
| M54D2G3264A-2.5BKG | 8M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D2G3264A-3BKG | 8M x 32 Bit x 8 Banks LPDDR2 SDRAM |
| M54D2G16128A | 16M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D2G16128A-1.8BKG | 16M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D2G16128A-2.5BKG | 16M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D2G16128A-3BKG | 16M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-1.8BKG | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-1.8BKG2G | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-2.5BKG | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
| M54D1G1664A-2.5BKG2G | 8M x 16 Bit x 8 Banks LPDDR2 SDRAM |
