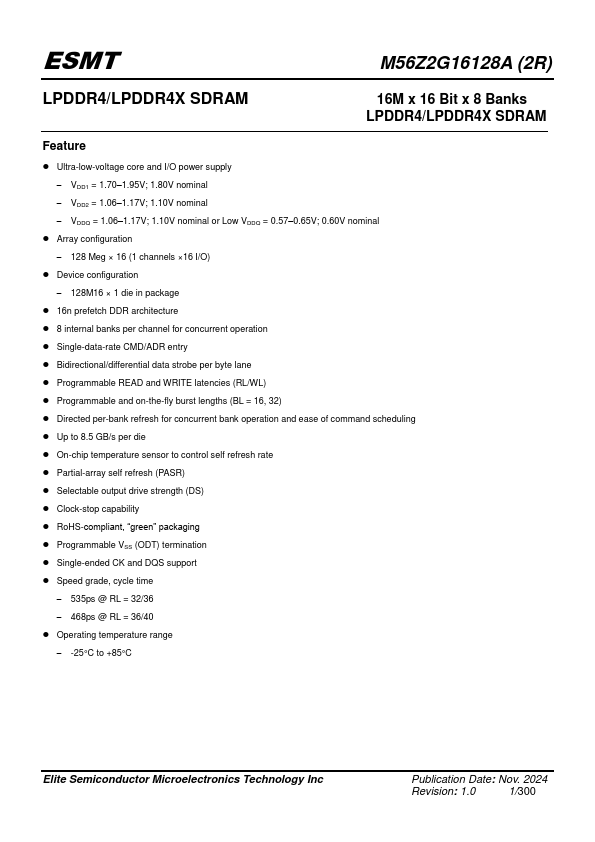

Overview: ESMT M56Z2G16128A (2R) LPDDR4/LPDDR4X SDRAM 16M x 16 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM Feature Ultra-low-voltage core and I/O power supply – VDD1 = 1.70–1.95V; 1.80V nominal – VDD2 = 1.06–1.17V; 1.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M56Z2G16128A-TNBYG2R |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 8.47 MB |
| Description | 16M x 16 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| Datasheet | M56Z2G16128A-TNBYG2R M56Z2G16128A-SMBYG2R Datasheet (PDF) |
|
|
| Part Number | Description |
|---|---|
| M56Z2G16128A-SMBYG2R | 16M x 16 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z4G16256A-SMBYG2H | 32M x 16 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z4G16256A-TNBYG2H | 32M x 16 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z4G32128A-SMBYG2R | 16M x 32 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z4G32128A-TNBYG2R | 16M x 32 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z8G32256A | 32M x 32 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z8G32256A-SMBYG | 32M x 32 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
| M56Z8G32256A-TNBYG2H | 32M x 32 Bit x 8 Banks LPDDR4/LPDDR4X SDRAM |
