ES9033 - 32-bit High-Performance 2-Channel DAC

Datasheet Summary

Description

Support for up to PCM 768kHz & DSD512 Reduced footprint and simplifies board layout PCM, TDM, DSD, DoP input data formats.

📥 Download Datasheet

Datasheet preview – ES9033

Datasheet Details

Part number ES9033
Manufacturer ESS
File Size 1.73 MB
Description 32-bit High-Performance 2-Channel DAC
Datasheet download datasheet ES9033 Datasheet
Additional preview pages of the ES9033 datasheet.
Other Datasheets by ESS

Full PDF Text Transcription

Click to expand full text

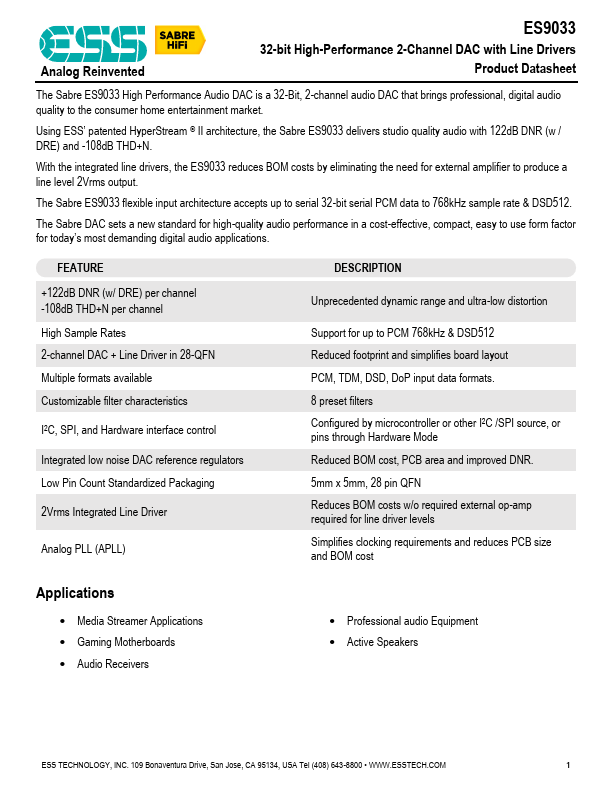

Analog Reinvented ES9033 32-bit High-Performance 2-Channel DAC with Line Drivers Product Datasheet The Sabre ES9033 High Performance Audio DAC is a 32-Bit, 2-channel audio DAC that brings professional, digital audio quality to the consumer home entertainment market. Using ESS’ patented HyperStream ® II architecture, the Sabre ES9033 delivers studio quality audio with 122dB DNR (w / DRE) and -108dB THD+N. With the integrated line drivers, the ES9033 reduces BOM costs by eliminating the need for external amplifier to produce a line level 2Vrms output. The Sabre ES9033 flexible input architecture accepts up to serial 32-bit serial PCM data to 768kHz sample rate & DSD512.
