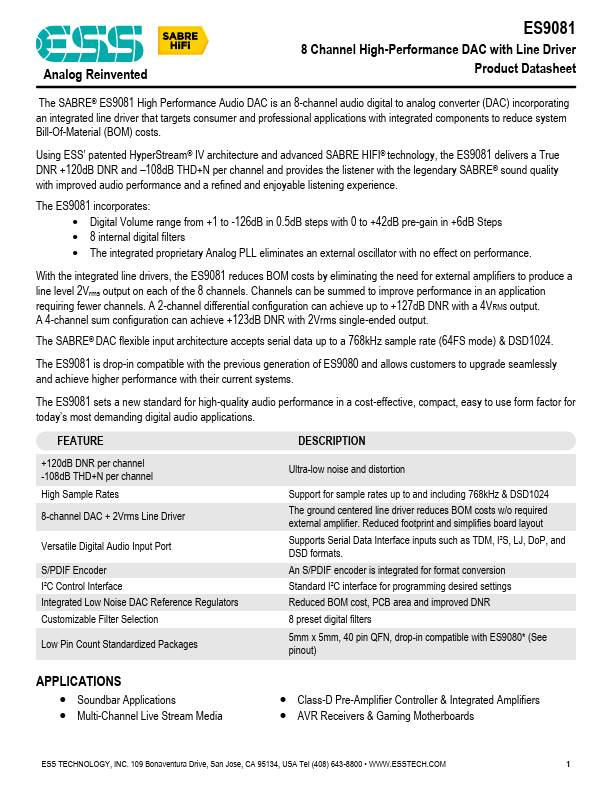

ES9081 Datasheet | ESS Technology

FEATURE +120d B DNR per channel -108d B THD+N per channel High Sample Rates 8-channel DAC + 2Vrms Line Driver Versatile Digital Audio Input Port S/PDIF Encoder I²C Control Interface Integrated Low Noise DAC Reference Regulators Customizable Filter Selection Low Pin Count Standardized Packages DESCRIPTION Ultra-low noise and distortion Support for sample rates up to and including 768k Hz & DSD1024 The ground centered line driver reduces BOM costs w/o required external amplifier. Reduced footprint and simplifies board layout Supports Serial Data Interface inputs such as TDM, I²S, LJ, Do P, and DSD formats. An S/PDIF encoder is integrated for format conversion Standard I²C interface for programming desired settings Reduced BOM cost, PCB area and improved DNR 8 preset digital filters 5mm x 5mm, 40 pin QFN, drop-in patible with ES9080- (See pinout) APPLICATIONS - Soundbar Applications - Multi-Channel Live Stream Media - Class-D Pre-Amplifier Controller & Integrated Amplifiers - AVR Receivers & Gaming Motherboards ESS TECHNOLOGY, INC. 109 Bonaventura Drive, San Jose, CA 95134, USA Tel (408) 643-8800 - .ESSTECH. VERSION 0.3 ES9081 Product...
