ESS ES9082

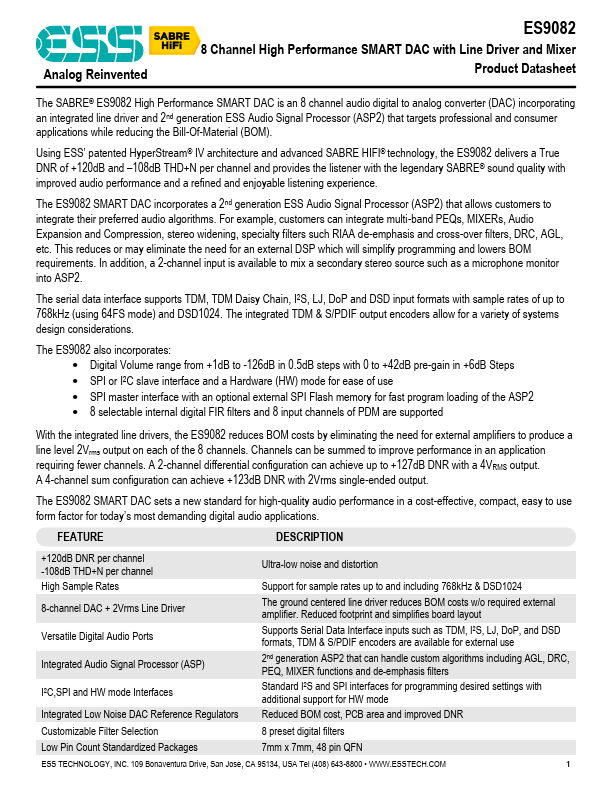

the ES9082 delivers a True DNR of +120dB and –108dB THD+N per channel and provides the listener with the legendary SABRE® sound quality with improved audio performance and a refined and enjoyable listening experience. The ES9082 SMART DAC incorporates a 2nd generation ESS Audio Signal Processor (ASP2) that allows customers to integrate their preferred audio algorithms. For example, customers can integrate multi-band PEQs, MIXERs, Audio Expansion and Compression, stereo widening, specialty filters such RIAA de-emphasis and cross-over filters, DRC, AGL, etc.
| Part No. |
ES9082 |
| Datasheet |
ES9082
Download
|
| Manufacturer |
 ESS |
| Description |
8-Channel High Performance SMART DAC |
| Buy |
Stock & Price
|
DESCRIPTION
+120dB DNR per channel -108dB THD+N per channel Ultra-low noise and distortion High Sample Rates Support for sample rates up to and including 768kHz & DSD1024 8-channel DAC + 2Vrms Line Driver The ground centered line driver reduces BOM costs w/o required external amplifier. Reduced footprint and simplifies board layout Versatile Digital Audio Ports Supports Serial Data Interface inputs such as TDM, I2S, LJ, DoP, and DSD formats, TDM & S/PDIF encoders are available for external use Integrated Audio Signal Processor (ASP) 2nd generation ASP2 that can handle custom algorithms including AGL, DRC, PEQ, MIXER functions and de-emphasis filters I2C,SPI and HW mode Interfaces Standard I2S and SPI interfaces for programming desired settings with additional support for HW mode Integrated Low Noise DAC Reference Regulators Reduced BOM cost, PCB area and improved DNR Customizable Filter Selection 8 preset digital filters Low Pin Count Standardized Packages 7mm x 7mm, 48 pin QFN ESS TECHNOLOGY, INC.
