EVVOSEMI 2SC4672
NPN Transistors
| Part No. | 2SC4672 |
|---|---|
| Datasheet | 2SC4672 Download |
| Manufacturer |  EVVOSEMI |
| Description | NPN Transistors |
| Buy | Stock & Price |
FEATURES
● Low Saturation Voltage● Excellent hFE Characteristics
● Complementary to 2SA1797 3 2 1 1.Base 2.Collector 3.Emitter

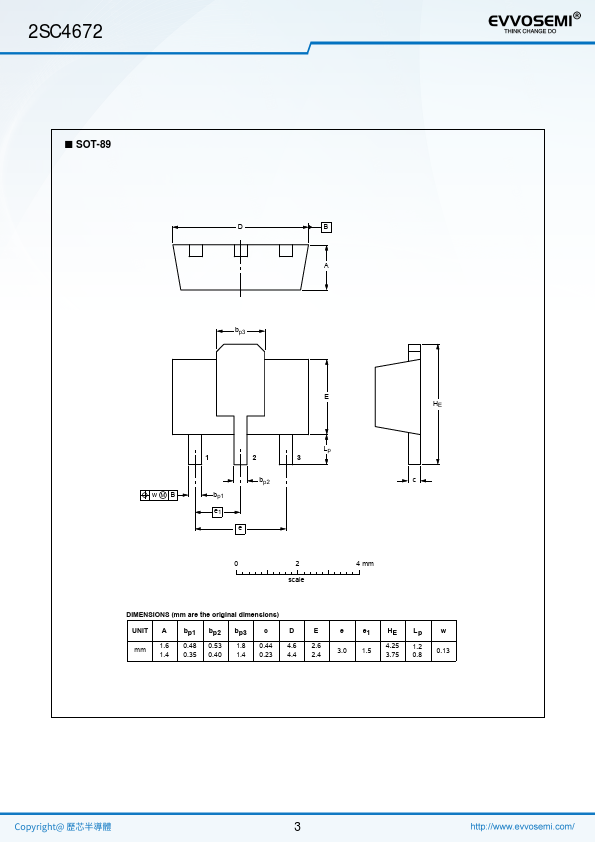

● Simplified outline(SOT-89)
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg Rating 60 50 6 2 500 250 150 -55 to 150 Unit V A mW ℃/W ℃●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage DC current gain Collector output capacitance Transition frequency Symbol Test Conditions VCBO Ic= 50 μA， IE= 0 VCEO Ic= 1 mA， IB= 0 VEBO IE= 50μA， IC= 0 ICBO VCB= 60V , IE= 0 IEBO VEB= 5V , IC=0...
