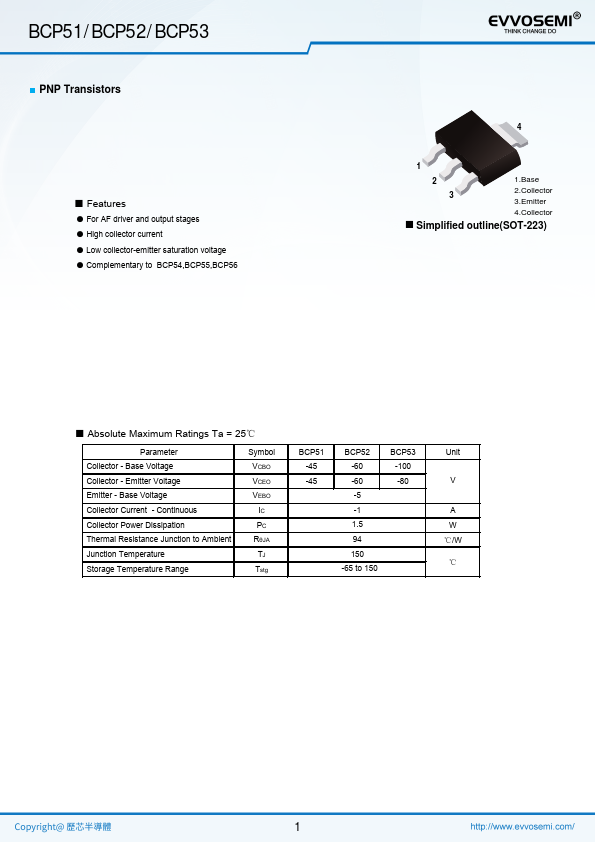

BCP51
Features
- For AF driver and output stages
- High collector current
- Low collector-emitter saturation voltage
- plementary to BCP54,BCP55,BCP56
2 3
1.Base 2.Collector 3.Emitter
4.Collector
- Simplified outline(SOT-223)
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg
BCP51 -45 -45
BCP52 -60 -60 -5 -1 1.5 94 150
-65 to 150
BCP53 -100 -80
Unit
A W ℃/W ℃
BCP51/BCP52/BCP53

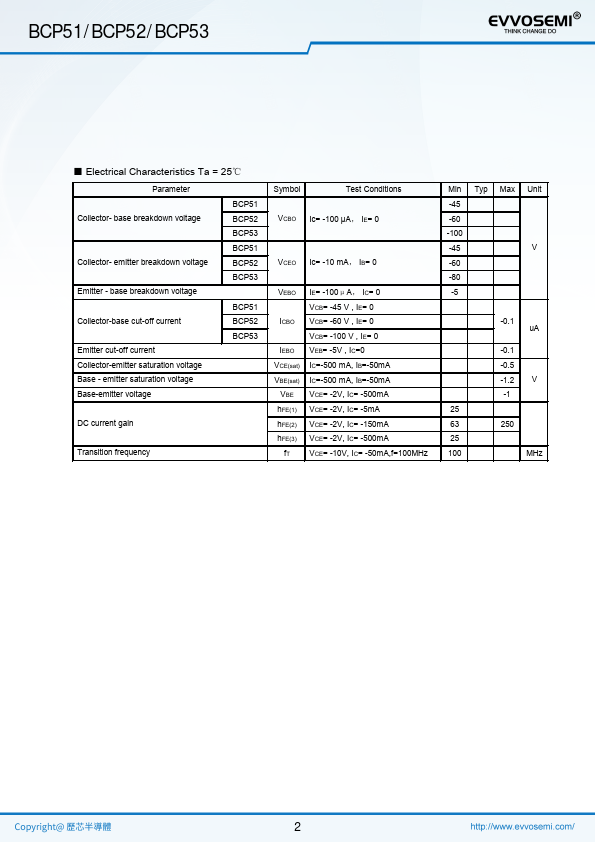

- Electrical Characteristics Ta = 25℃
Parameter
Collector- base breakdown voltage
Collector- emitter breakdown voltage Emitter
- base breakdown voltage
Collector-base cut-off current
Emitter cut-off current Collector-emitter saturation voltage Base
- emitter saturation voltage Base-emitter voltage
BCP51 BCP52 BCP53 BCP51 BCP52...
