MMBTA05

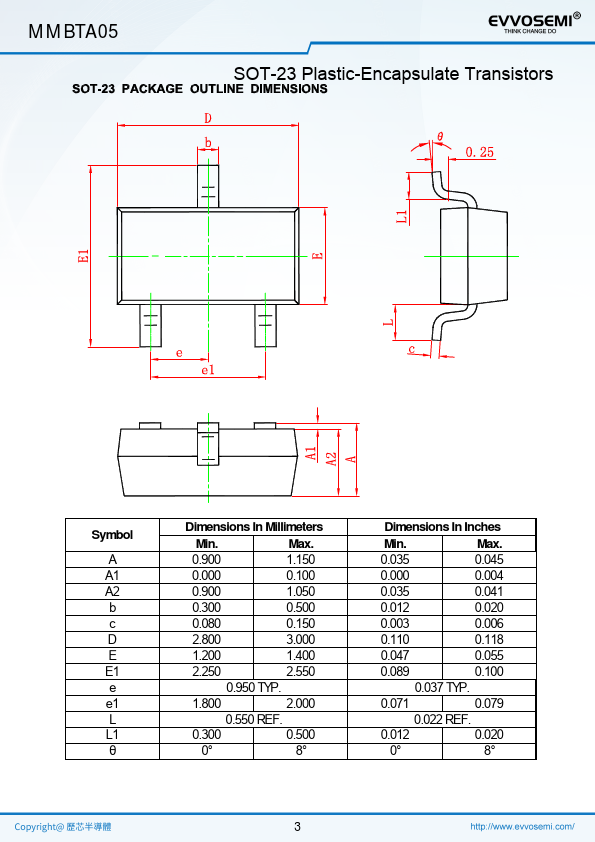

MMBTA05 is SOT-23 Plastic-Encapsulate Transistors manufactured by EVVO.
FEATURES
Driver transistor
MARKING :1H

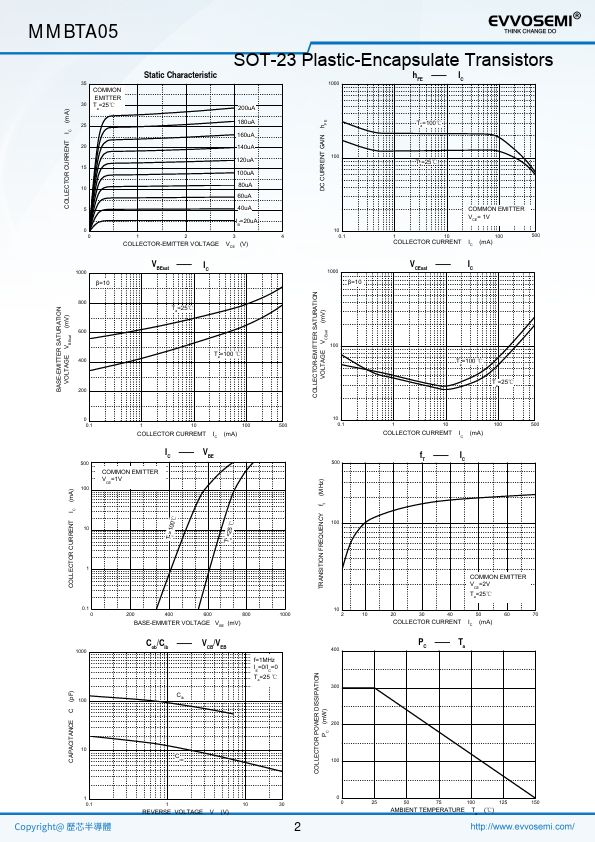

MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol VCBO VCEO VEBO IC PC TJ Tstg
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Junction Temperature Storage Temperature
Value 60 60 4 0.5 300 150
-55-150
Unit V V V A m W ℃ ℃
1. BASE 2. EMITTER 3. COLLECTOR
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Collector cut-off current Collector cut-off current
DC current gain
Collector-emitter saturation voltage Base-emitter voltage Transition frequency
Symbol
Test conditions
V(BR)CBO IC= 100μA, IE=0
V(BR)CEO IC= 1m A, IB=0
V(BR)EBO IE=100μA, IC=0
ICBO
VCB=60V, IE=0
ICEO
VCE=60V, IB=0
IEBO
VEB=3V, IC=0 h FE1
VCE=1V, IC= 10m A h FE2
VCE=1V, IC= 100m A
VCE(sat)
IC=100m A, IB=10m A
VCE=1V, IC= 100m A
VCE= 2V, IC=10m A f T f=100MHz
Min
Typ...
