MMBTA05 - NPN General Purpose Transistor

Galaxy Microelectronics

Key Features

High breakdown voltage.
Complementary PNP type available Pb Lead-free (MMBTA55/MMBTA56).
Low collector-emitter saturation voltage.

MMBTA05 npn general purpose transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	MMBTA05
Manufacturer	Galaxy Microelectronics
File Size	393.21 KB
Description	NPN General Purpose Transistor
Datasheet	MMBTA05 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBTA05	NPN Small Signal Transistor	Taiwan Semiconductor
MMBTA05	NPN Silicon Epitaxial Transistor	SeCoS
MMBTA05	DRIVER TRANSISTOR	Motorola
MMBTA05	NPN Transistor	HOTTECH
MMBTA05	NPN Transistor	Diodes Incorporated

Other Datasheets by Galaxy Microelectronics

Part Number	Description
MMBTA06	NPN General Purpose Transistor
MMBTA13	NPN Darlington Amplifier Transistor
MMBTA14	NPN Darlington Amplifier Transistor
MMBTA42	NPN High Voltage Amplifier
MMBTA43	NPN High Voltage Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

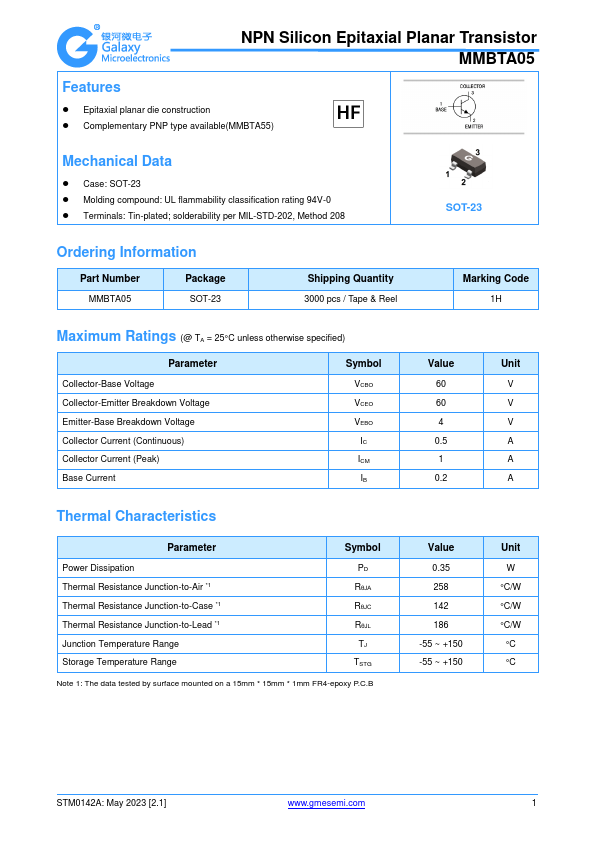

Production specification NPN General Purpose Transistor FEATURES  High breakdown voltage.  Complementary PNP type available Pb Lead-free (MMBTA55/MMBTA56).  Low collector-emitter saturation voltage. APPLICATIONS  Ideal for medium power amplification and switching. ORDERING INFORMATION Type No. Marking MMBTA05 MMBTA06 1H 1GM MMBTA05/MMBTA06 SOT-23 Package Code SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCBO VCEO collector-base voltage collector-emitter voltage MMBTA05 MMBTA06 MMBTA05 MMBTA06 VEBO emitter-base voltage IC collector current (DC) PC Collector dissipation RθJA Thermal Resistance, Junction to Ambient Tj ,Tstg junction and storage temperature Value 60 80 60 80 4 0.
