MMBTA05 Datasheet NPN And PNP High Voltage Transistor

Manufacturer: PanJit Semiconductor

Overview: MMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 NPN AND PNP HIGH VOLTAGE TRANSISTOR Voltage 60~80V Power 225mW.

Datasheet Details

Part number	MMBTA05
Manufacturer	PanJit Semiconductor
File Size	401.44 KB
Description	NPN AND PNP HIGH VOLTAGE TRANSISTOR
Datasheet	MMBTA05-PANJIT.pdf

Key Features

NPN and PNP silicon, planar design.
Collector current IC = 500mA.
Lead free in compliance with EU RoHS 2.0.

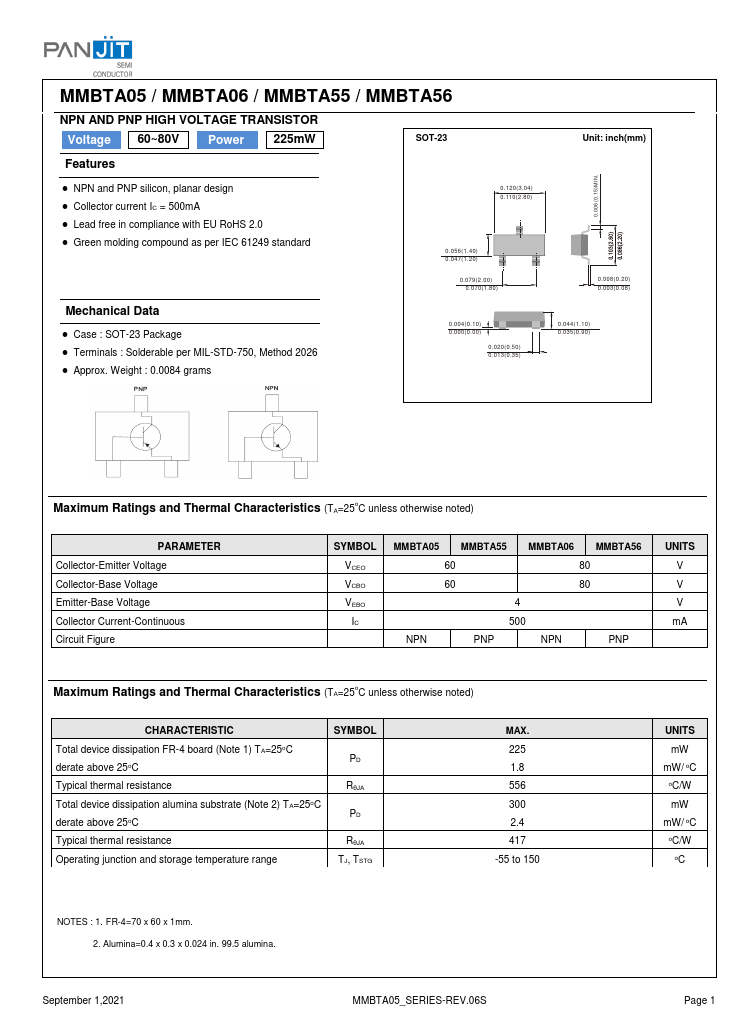

Green molding compound as per IEC 61249 standard 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) Mechanical Data.
Case : SOT-23 Package.
Terminals : Solderable per MIL-STD-750, Method 2026.
Approx. Weight : 0.0084 grams 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.006(0.15)MIN. Unit: inch(mm) 0.008(0.20) 0.003(0.08) 0.
