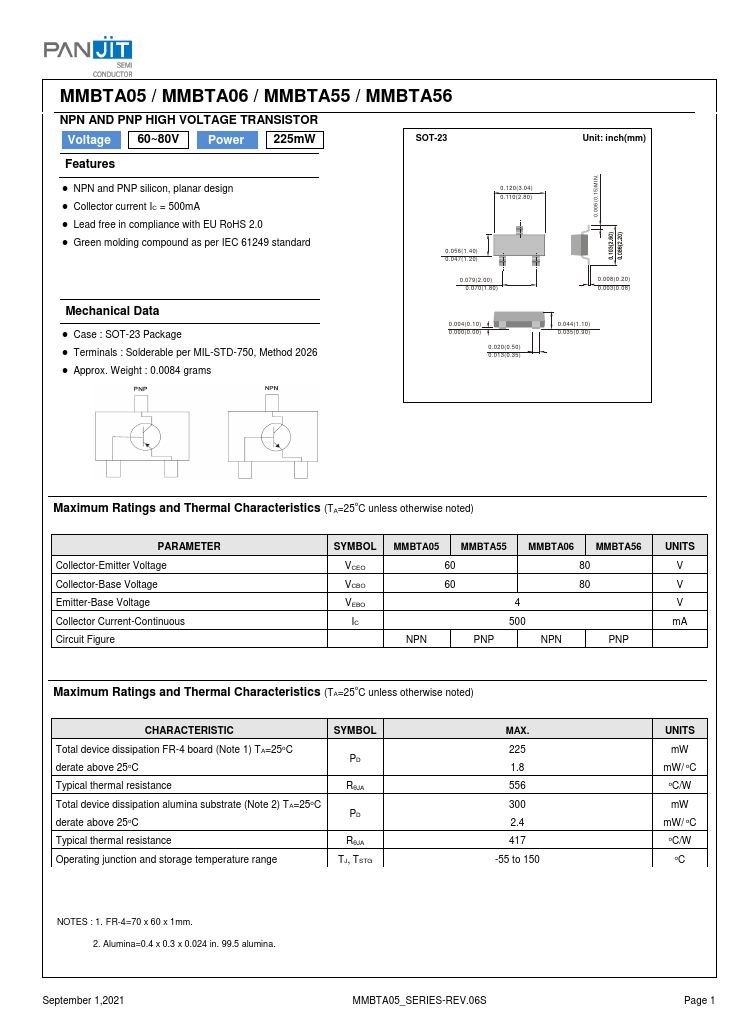

MMBTA05 / MMBTA06 / MMBTA55 / MMBTA56
NPN AND PNP HIGH VOLTAGE TRANSISTOR Voltage 60~80V Power 225mW
SOT-23
Features
- NPN and PNP silicon, planar design
- Collector current IC = 500mA
- Lead free in pliance with EU RoHS 2.0
- Green molding pound as per IEC 61249 standard
0.120(3.04) 0.110(2.80)
0.056(1.40) 0.047(1.20)
0.079(2.00) 0.070(1.80)
Mechanical Data
- Case : SOT-23 Package
- Terminals : Solderable per MIL-STD-750, Method 2026
- Approx. Weight : 0.0084 grams
0.004(0.10) 0.000(0.00)
0.020(0.50) 0.013(0.35)
0.006(0.15)MIN.
Unit: inch(mm)
0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.90)
Maximum Ratings and Thermal Characteristics (TA=25oC unless otherwise...
