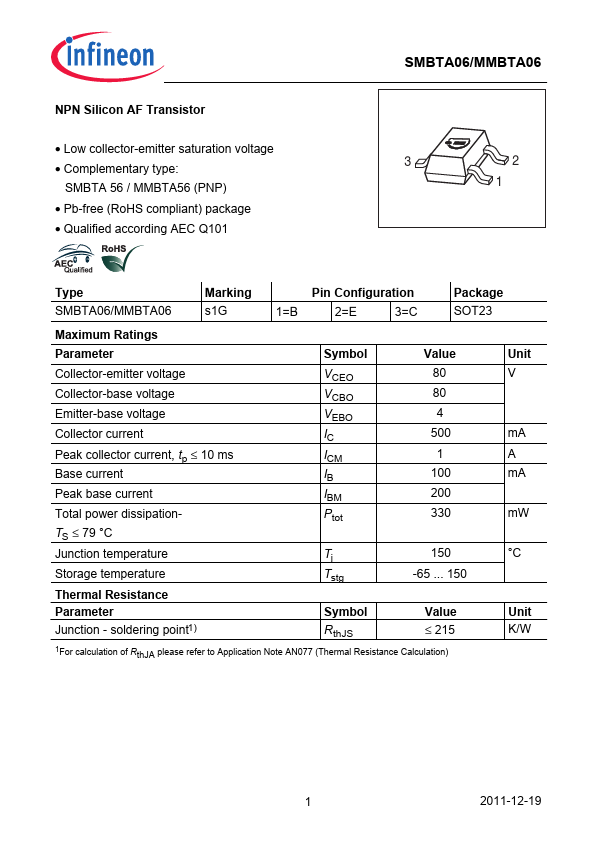

MMBTA06
MMBTA06 is NPN Silicon AF Transistor manufactured by Infineon.
NPN Silicon AF Transistor
- Low collector-emitter saturation voltage
- plementary type:
SMBTA 56 / MMBTA56 (PNP)
- Pb-free (Ro HS pliant) package
- Qualified according AEC Q101
SMBTA06/MMBTA06
Type SMBTA06/MMBTA06
Marking s1G
Pin Configuration
1=B
2=E
3=C
Package SOT23
Maximum Ratings
Parameter
Symbol
Value
Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current, tp ≤ 10 ms Base current Peak base current Total power dissipation TS ≤ 79 °C Junction temperature Storage temperature
VCEO VCBO VEBO IC ICM IB IBM Ptot
Tj Tstg
80 80 4 500 1 100 200 330
150 -65 ... 150
Thermal Resistance
Parameter Junction
- soldering point1)
Symbol Rth JS
Value ≤ 215
1For calculation of Rth JA please refer to Application Note AN077 (Thermal Resistance Calculation)
Unit V m A A m A m W
°C
Unit K/W
2011-12-19
SMBTA06/MMBTA06

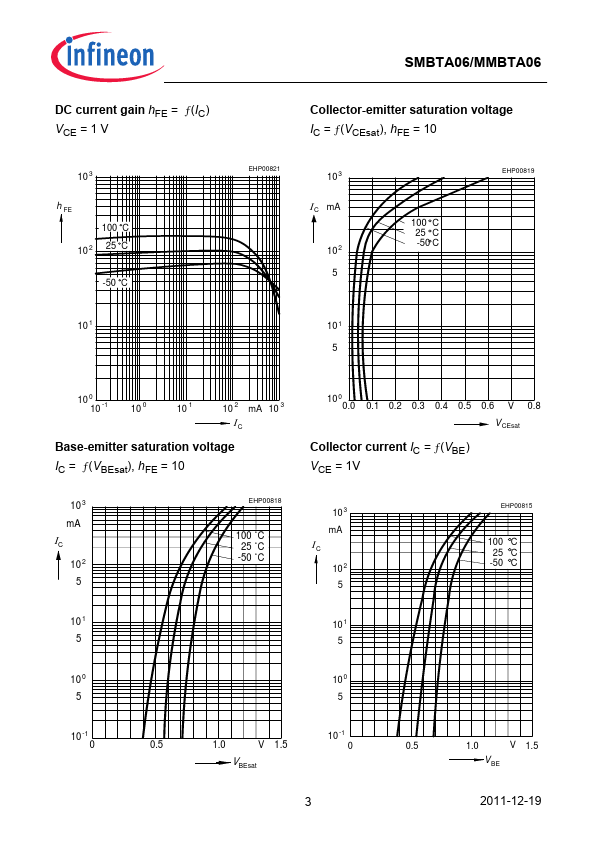

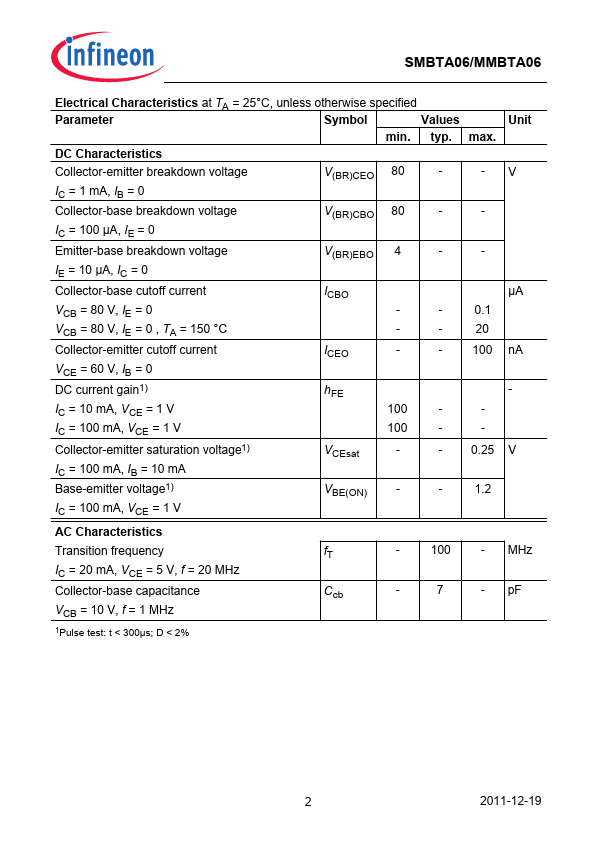

Electrical Characteristics at TA = 25°C, unless otherwise specified
Parameter...
