MMBTA06 Datasheet | Galaxy Microelectronics

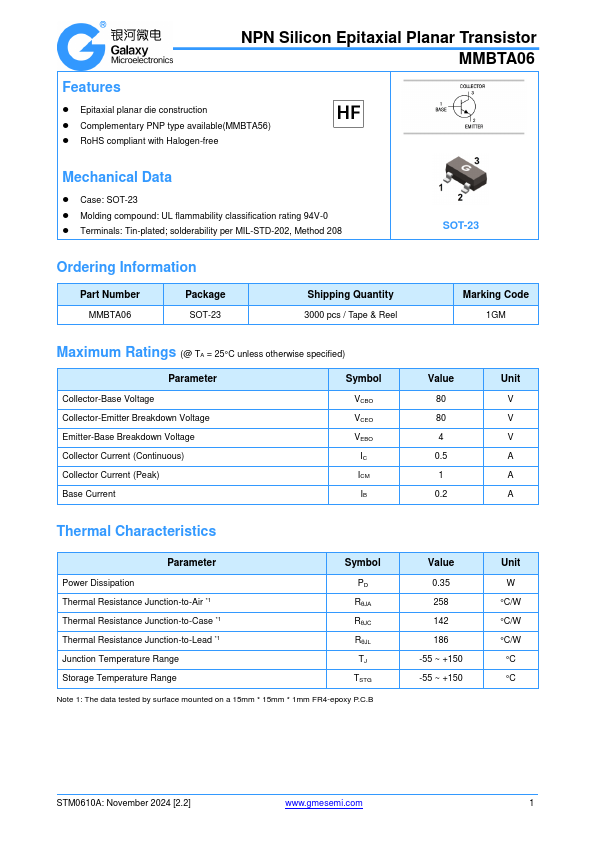

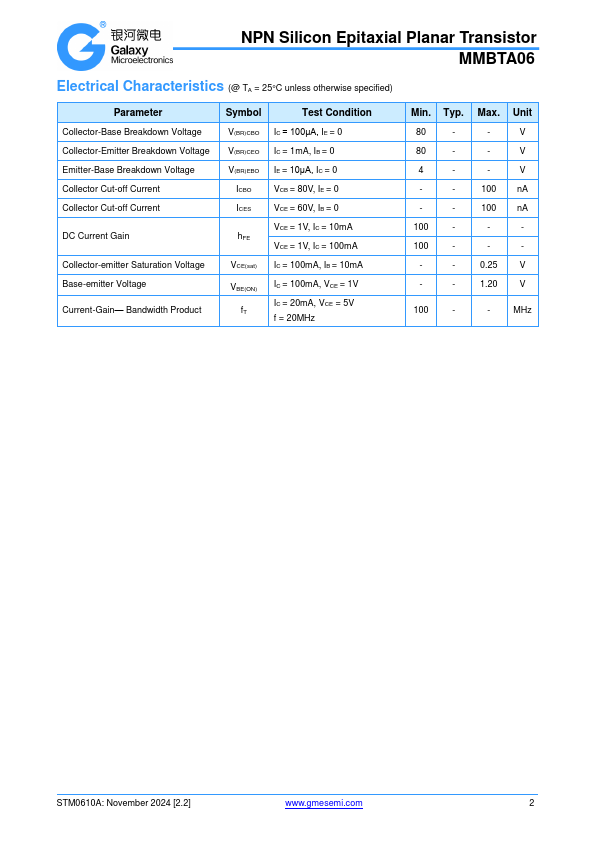

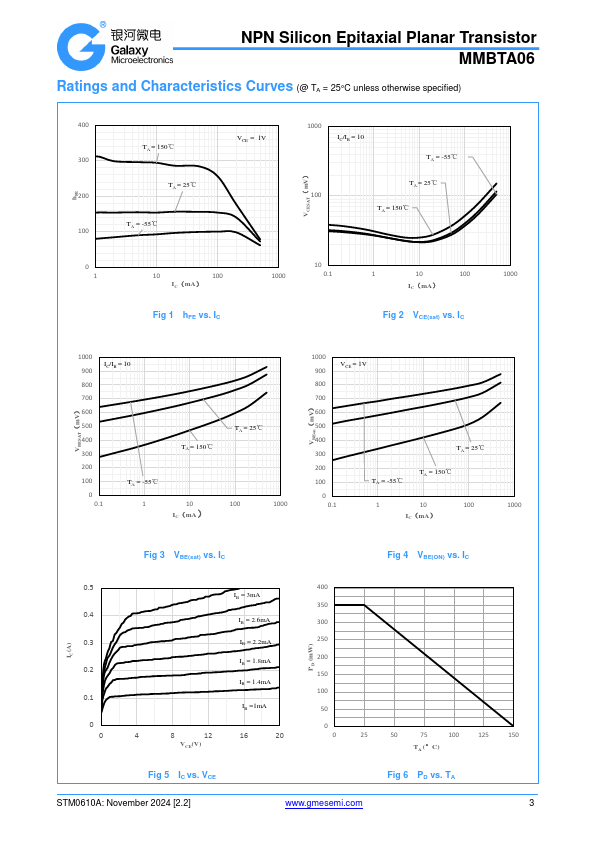

Features - Epitaxial planar die construction - plementary PNP type available(MMBTA56) - Ro HS pliant with Halogen-free Mechanical Data - Case: SOT-23 - Molding pound: UL flammability classification rating 94V-0 - Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number MMBTA06 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 1GM Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Peak) Base Current Symbol VCBO VCEO VEBO IC ICM IB Value 80 80 4 0.5 1 0.2 Unit V V V A A A Thermal Characteristics Parameter Symbol Power Dissipation Thermal Resistance Junction-to-Air - 1 Thermal Resistance Junction-to-Case - 1 Thermal Resistance Junction-to-Lead - 1 Junction Temperature Range Storage Temperature Range PD RθJA RθJC RθJL TJ TSTG Note 1: The data tested by surface mounted on a 15mm - 15mm - 1mm FR4-epoxy P.C.B Value 0.35 258 142 186 -55 ~ +150 -55 ~ +150 Unit W °C/W °C/W °C/W °C °C STM0610A: November 2024 [2.2] .gmesemi. NPN Silicon Epitaxial Planar Transistor MMBTA06 Electrical Characteristics (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-off Current Collector Cut-off...
