MMBTA05 Datasheet | Good-Ark Semiconductor

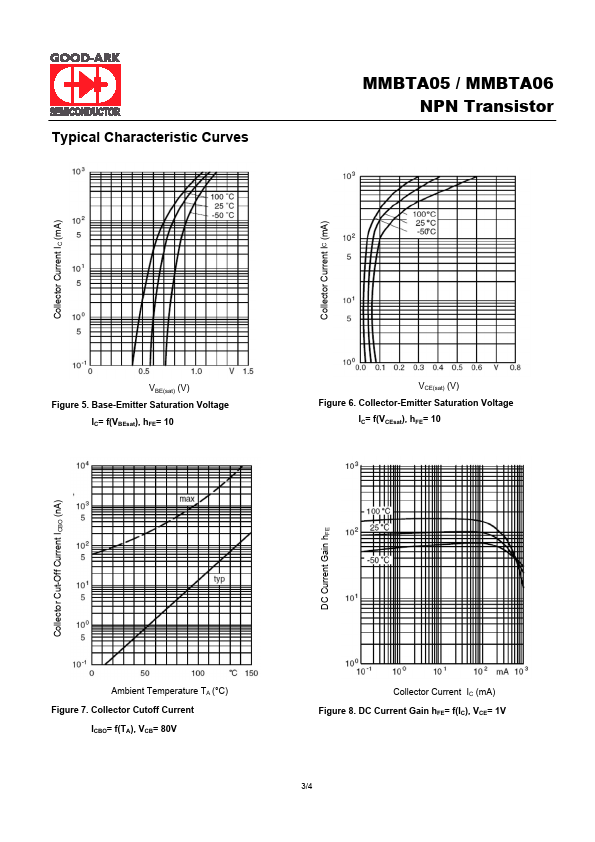

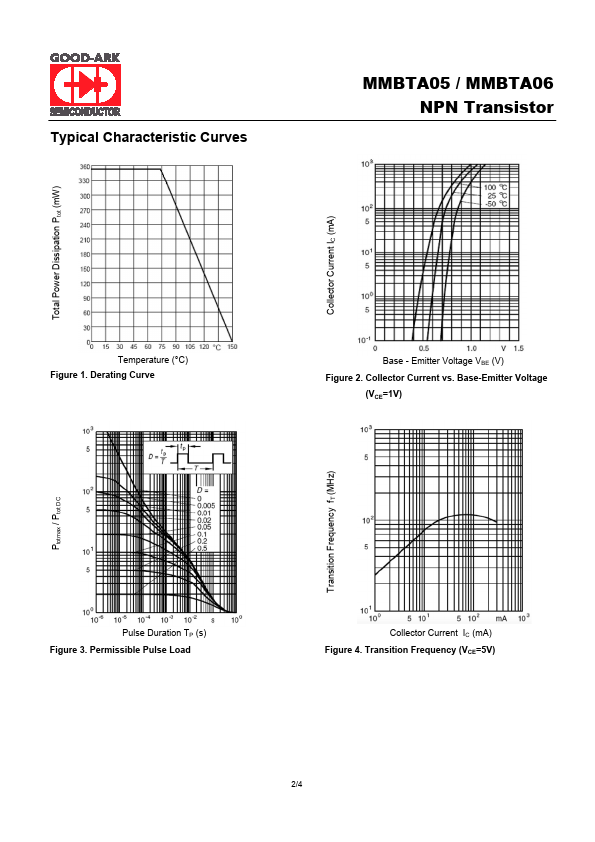

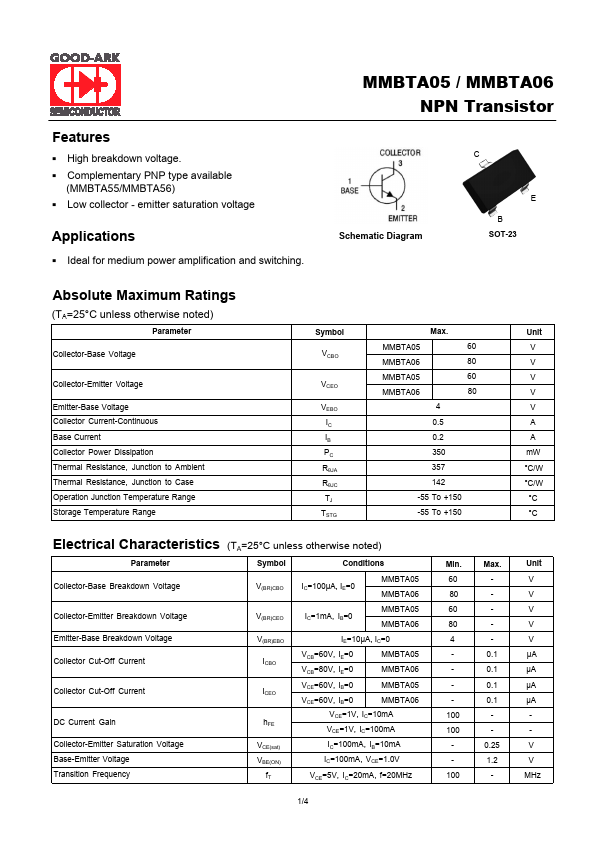

Features - High breakdown voltage. - plementary PNP type available (MMBTA55/MMBTA56) - Low collector - emitter saturation voltage Applications - Ideal for medium power amplification and switching. MMBTA05 / MMBTA06 NPN Transistor Schematic Diagram E B SOT-23 Absolute Maximum Ratings (TA=25°C unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current-Continuous Base Current Collector Power Dissipation Thermal Resistance, Junction to Ambient Thermal Resistance, Junction to Case Operation Junction Temperature Range Storage Temperature Range Symbol VCBO VCEO VEBO IC IB PC RθJA RθJC TJ TSTG Max. MMBTA06 MMBTA06 -55 To +150 -55 To +150 Electrical Characteristics (TA=25°C unless otherwise noted) Parameter Symbol Conditions Collector-Base Breakdown...
