MMBTA56 Datasheet | EVVO

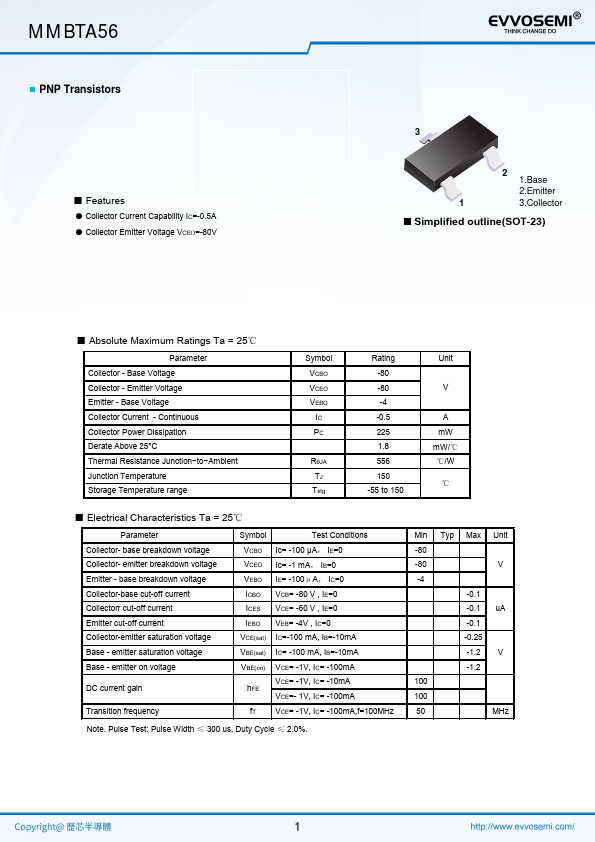

Features - Collector Current Capability IC=-0.5A - Collector Emitter Voltage VCEO=-80V 2 1.Base 2.Emitter 3.Collector - Simplified outline(SOT-23) - Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Derate Above 25°C Thermal Resistance Junction- to- Ambient Junction Temperature Storage Temperature range Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg Rating -80 -80 -4 -0.5 225 1.8 556 150 -55 to 150 Unit A m W m W/℃ ℃/W ℃ - Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Collectorr cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage Base - emitter on voltage DC current gain Transition frequency Symbol Test Conditions VCBO Ic= -100 μA， IE=0 VCEO Ic= -1 m A， IB=0 VEBO IE= -100μA， IC=0 ICBO VCB= -80 V , IE=0 ICES VCE= -60 V , IE=0 IEBO VEB= -4V , IC=0 VCE(sat) IC=-100 m A, IB=-10m A VBE(sat) IC= -100 m A, IB=-10m A VBE(on) VCE= -1V, IC= -100m...
