MMBTA56 - PNP General Purpose Transistor

Bruckewell

Download the MMBTA56 datasheet PDF. This datasheet also covers the MMBTA55 variant, as both devices belong to the same pnp general purpose transistor family and are provided as variant models within a single manufacturer datasheet.

Key Features

Epitaxial planar die construction.
Complementary NPN type available(MMBTA05/MMBTA06).
Low collector-emitter saturation voltage.
RoHS compliant package.

📥 Download Datasheet

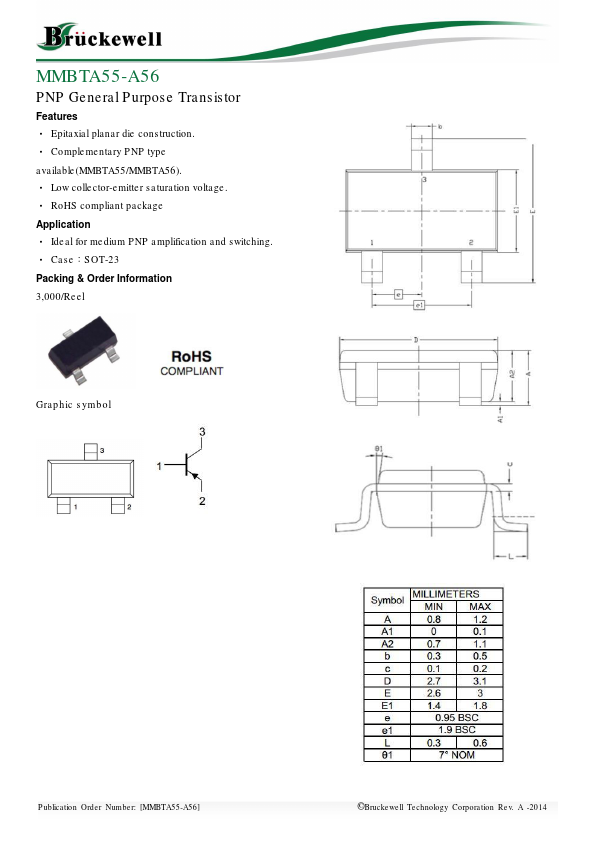

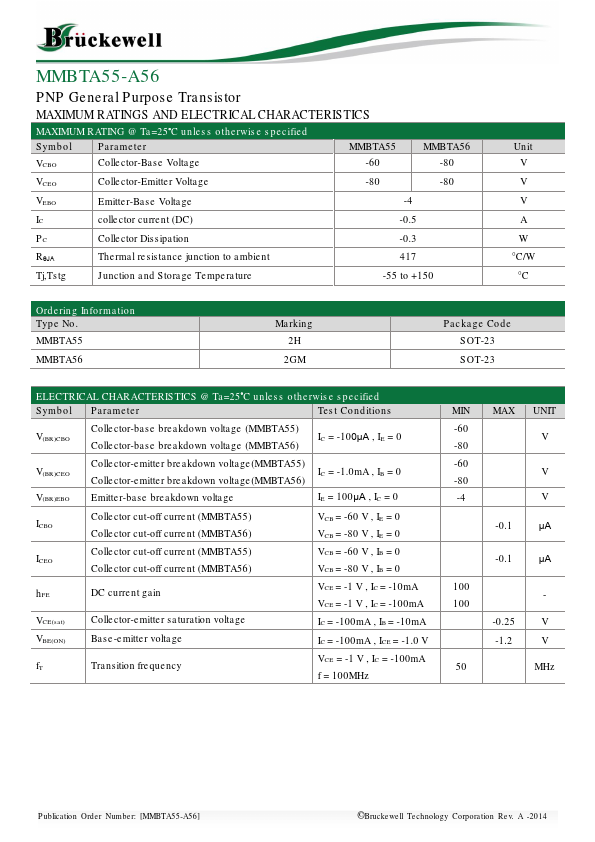

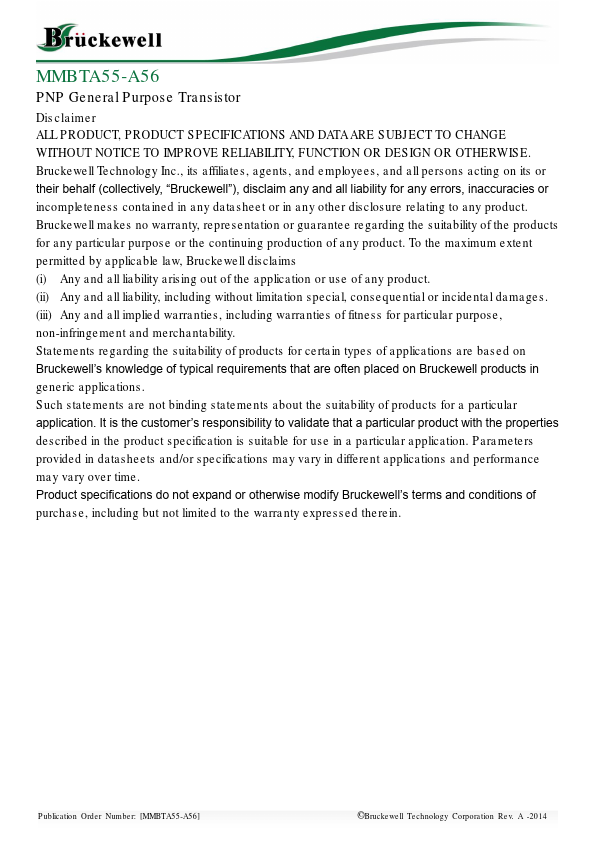

MMBTA56 pnp general purpose transistor by Bruckewell - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MMBTA55-Bruckewell.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MMBTA56
Manufacturer	Bruckewell
File Size	176.64 KB
Description	PNP General Purpose Transistor
Datasheet	MMBTA56 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBTA56	PNP General Purpose Amplifier	MCC
MMBTA56	PNP GENERAL PURPOSE TRANSISTOR	LITE-ON
MMBTA56	SMD General Purpose Transistor	TAITRON
MMBTA56	DRIVER TRANSISTOR	Motorola
MMBTA56	PNP General-Purpose Amplifier	ON Semiconductor

Other Datasheets by Bruckewell

Part Number	Description
MMBTA55	PNP General Purpose Transistor
MMBT3906	PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

MMBTA55-A56 PNP General Purpose Transistor Features • Epitaxial planar die construction. • Complementary NPN type available(MMBTA05/MMBTA06). • Low collector-emitter saturation voltage. • RoHS compliant package Application • Ideal for medium NPN amplification and switching. Packing & Order Information 3,000/Reel Graphic symbol Publication Order Number: [MMBTA55-A56] © Bruckewell Technology Corporation Rev. A -2014 MMBTA55-A56 PNP General Purpose Transistor MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS MAXIMUM RATING @ Ta=25°C unless otherwise specified Symbol Parameter MMBTA55 MMBTA56 VCBO Collector-Base Voltage -60 -80 VCEO Collector-Emitter Voltage -80 -80 VEBO Emitter-Base Voltage -4 IC collector current (DC) -0.5 PC Collector Dissipation -0.
