MMBTA55 - PNP General Purpose Transistor

Bruckewell

Key Features

Epitaxial planar die construction.
Complementary NPN type available(MMBTA05/MMBTA06).
Low collector-emitter saturation voltage.
RoHS compliant package.

MMBTA55 pnp general purpose transistor by Bruckewell - Datasheet Preview

Datasheet Details

Part number	MMBTA55
Manufacturer	Bruckewell
File Size	176.64 KB
Description	PNP General Purpose Transistor
Datasheet	MMBTA55 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MMBTA55	PNP General Purpose Amplifier	MCC
MMBTA55	PNP GENERAL PURPOSE TRANSISTOR	LITE-ON
MMBTA55	SMD General Purpose Transistor	TAITRON
MMBTA55	PNP Silicon Driver Transistor	SeCoS
MMBTA55	PNP General Purpose Transistor	BL Galaxy Electrical

Other Datasheets by Bruckewell

Part Number	Description
MMBTA56	PNP General Purpose Transistor
MMBT3906	PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

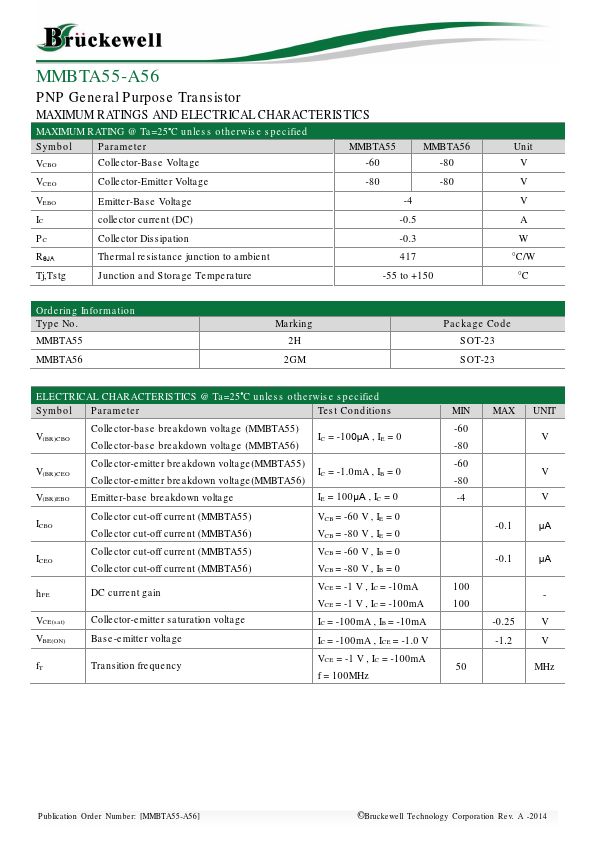

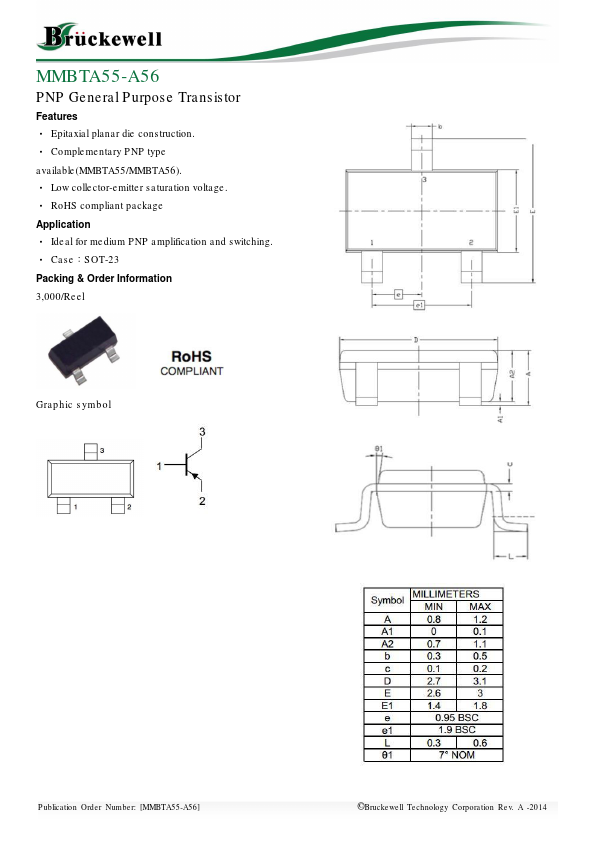

MMBTA55-A56 PNP General Purpose Transistor Features • Epitaxial planar die construction. • Complementary NPN type available(MMBTA05/MMBTA06). • Low collector-emitter saturation voltage. • RoHS compliant package Application • Ideal for medium NPN amplification and switching. Packing & Order Information 3,000/Reel Graphic symbol Publication Order Number: [MMBTA55-A56] © Bruckewell Technology Corporation Rev. A -2014 MMBTA55-A56 PNP General Purpose Transistor MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS MAXIMUM RATING @ Ta=25°C unless otherwise specified Symbol Parameter MMBTA55 MMBTA56 VCBO Collector-Base Voltage -60 -80 VCEO Collector-Emitter Voltage -80 -80 VEBO Emitter-Base Voltage -4 IC collector current (DC) -0.5 PC Collector Dissipation -0.
