MMBTA56 Datasheet NPN And PNP High Voltage Transistor

Manufacturer: PanJit Semiconductor

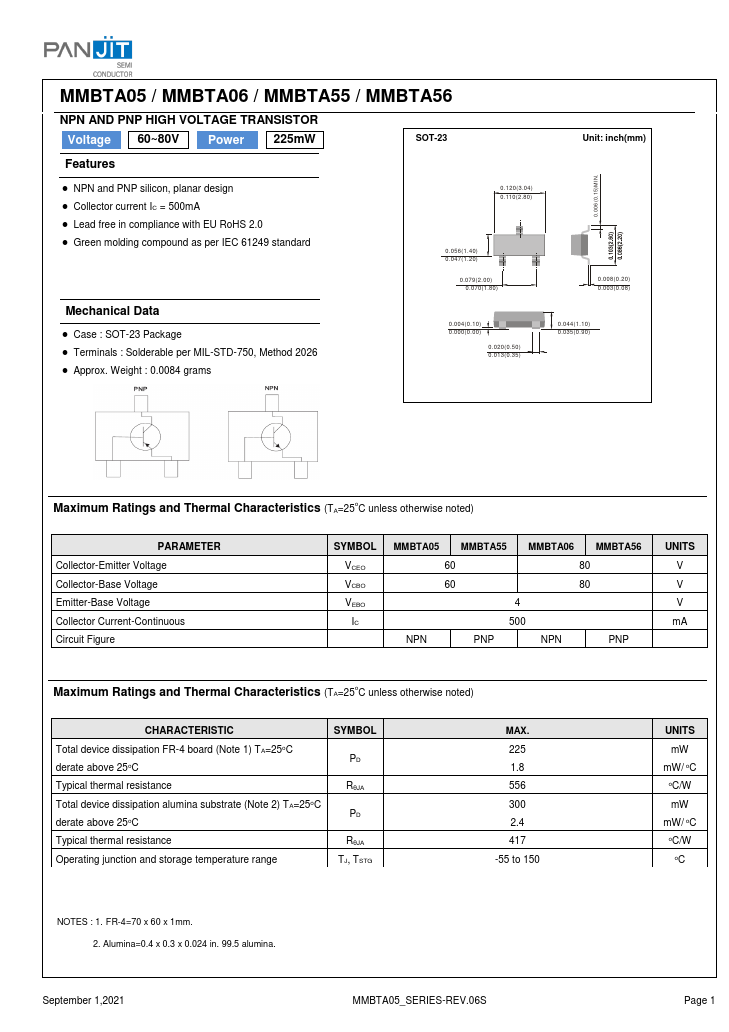

Overview: MMBTA05 / MMBTA06 / MMBTA55 / MMBTA56 NPN AND PNP HIGH VOLTAGE TRANSISTOR Voltage 60~80V Power 225mW.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

Part number	MMBTA56
Manufacturer	PanJit Semiconductor
File Size	401.44 KB
Description	NPN AND PNP HIGH VOLTAGE TRANSISTOR
Datasheet	MMBTA56 MMBTA05 Datasheet (PDF)

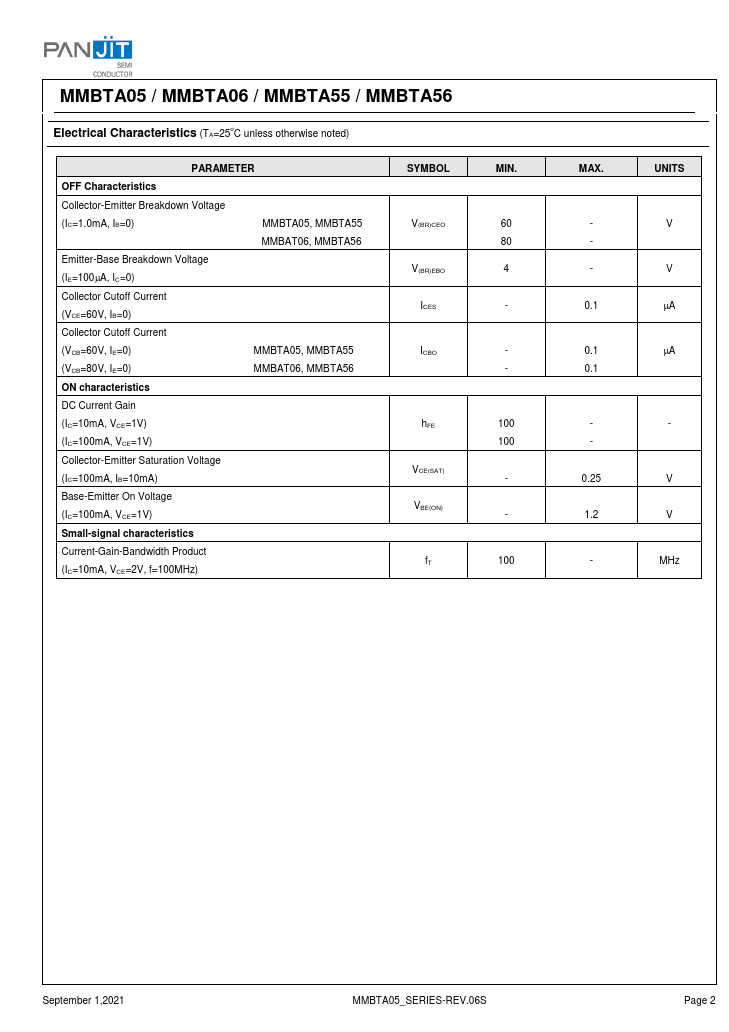

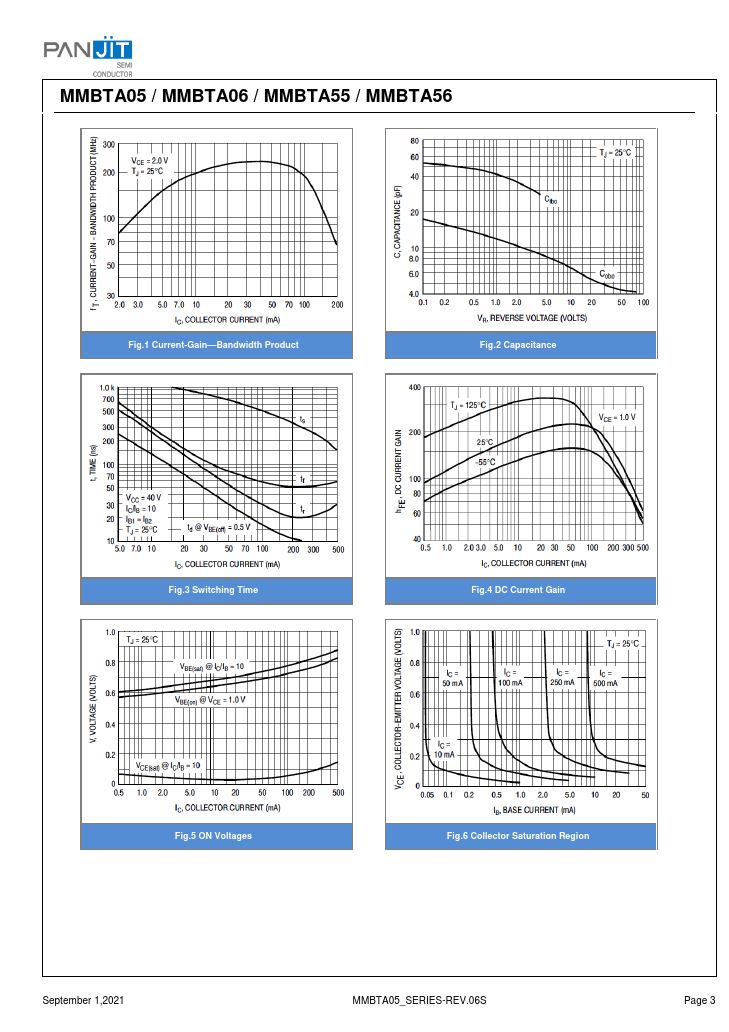

Key Features

NPN and PNP silicon, planar design.
Collector current IC = 500mA.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) Mechanical Data.
Case : SOT-23 Package.
Terminals : Solderable per MIL-STD-750, Method 2026.
Approx. Weight : 0.0084 grams 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.006(0.15)MIN. Unit: inch(mm) 0.008(0.20) 0.003(0.08) 0.
