EMD2095 - PWM Step-Up DC/DC Converter

General Description

The EMD2095 is a highly efficient, step-up DC/DC converter for driving white LEDs.

The device can drive up to 9 serially connected white LEDs from a single Li-Ion battery, or to drive multiple serial and parallel combinations with a DC power supply from 2.5V to 5.5V.

Key Features

  • Up to 9 WLEDs supports Low Quiescent Current: 120 μA Over Voltage Protection: 31V Inherently Matched LED Current Shutdown Current < 1μA Reference Voltage 0.245V PWM Dimming Control (2KHz~200kHz) Internal Soft Start and Compensation 1.4A Internal power MOSFET Switch Low Profile SOT-23-6 Package Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EMD2050 PWM Step-Up DC/DC Converter ESMT
EMD2081 Constant Current LED Lighting Driver ESMT
EMD2 General purpose (dual digital transistors) Rohm
EMD2 Dual Digital Transistors JCET
EMD2155 Non-isolated Linear AC LED Driver ESMT

Other Datasheets by ESMT (Elite Semiconductor Microelectronics Technology)

Part Number Description
EMD2055 PWM Step-Up DC/DC Converter
EMD2080 Constant Current LED Lighting Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

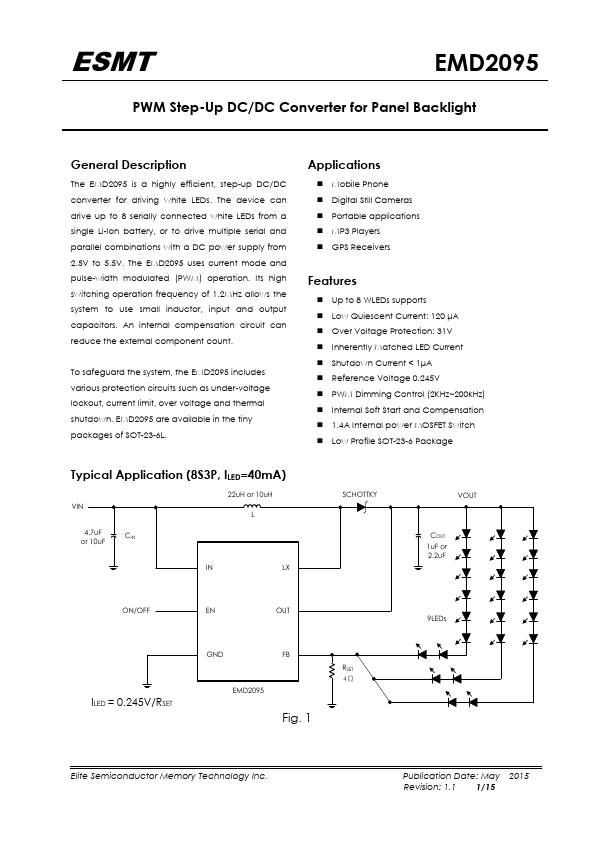

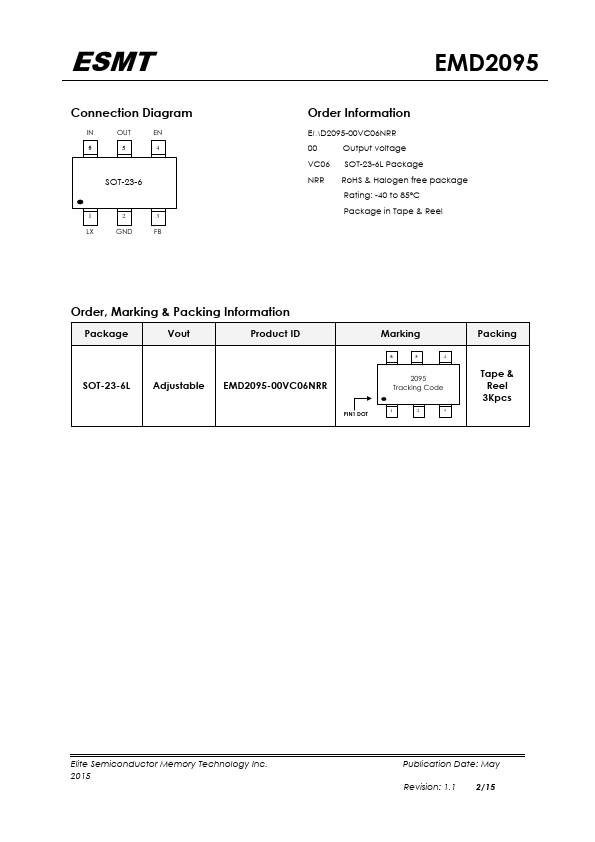

ESMT EMD2095 PWM Step-Up DC/DC Converter for Panel Backlight General Description The EMD2095 is a highly efficient, step-up DC/DC converter for driving white LEDs. The device can drive up to 9 serially connected white LEDs from a single Li-Ion battery, or to drive multiple serial and parallel combinations with a DC power supply from 2.5V to 5.5V. The EMD2095 uses current mode and pulse-width modulated (PWM) operation. Its high switching operation frequency of 1.2MHz allows the system to use small inductor, input and output capacitors. An internal compensation circuit can reduce the external component count. To safeguard the system, the EMD2095 includes various protection circuits such as under-voltage lockout, current limit, over voltage and thermal shutdown.
