EMP8965 - 600mA Micropower CMOS Linear Regulator

Description

The EMP8965 low-dropout (LDO) CMOS linear regulators feature ultra-high power supply rejection ratio (75dB at 1kHz), low output voltage noise (30µV), low dropout voltage (270mV), low quiescent current (110µA), and fast transient response.

Features

  • Miniature SOT-23-5, SOT-23-6and SOT-89-5 packages 600mA guaranteed output current 75dB typical PSRR at 1kHz 30µV RMS output voltage noise (10Hz to 100kHz) 270mV typical dropout at 600mA 110µA typical quiescent current 1nA typical shutdown mode Fast line and load transient response 80µs typical fast turn-on time 2.5V to 5.5V input range Stable with small ceramic output capacitors Over temperature and over current protection ±2% output voltage tolerance The.

📥 Download Datasheet

Datasheet preview – EMP8965

Datasheet Details

Part number EMP8965
Manufacturer Elite Semiconductor
File Size 631.51 KB
Description 600mA Micropower CMOS Linear Regulator
Datasheet download datasheet EMP8965 Datasheet

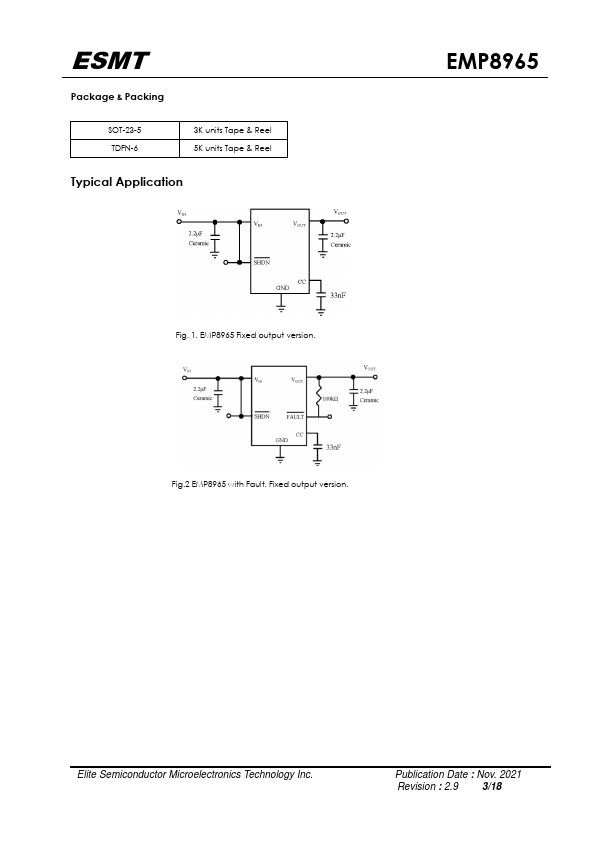

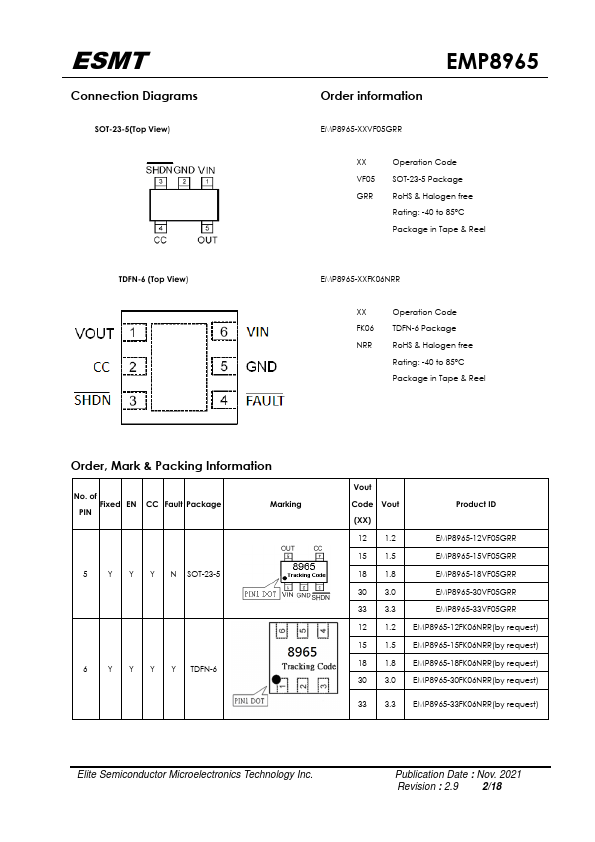

Additional preview pages of the EMP8965 datasheet.

📁 Similar Datasheet

  • EMP8165 - 2A Ultra Low Dropout Voltage Regulator (ESMT)
  • EMP8165A - 2A Ultra Low Dropout Voltage Regulator (ESMT)
  • EMP85N10CS - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP85N10H - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP-8603 - Mini-PCI Adapter (EnGenius)
  • EMP11 - Switching diode (Rohm)
  • EMP16N04HS - MOSFET (Excelliance MOS)
  • EMP18K03HPCS - Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP19K03HPC - Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP19K03HPCS - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
Other Datasheets by Elite Semiconductor
  • EMP8966 - 600mA Micropower CMOS Linear Regulator
  • EMP8915 - 150mA Micropower CMOS Linear Regulator
  • EMP8916 - 150mA Micropower CMOS Linear Regulator
  • EMP891X - 150mA Micropower CMOS Linear Regulator
  • EMP8935 - 300mA Micropower CMOS Linear Regulator
  • EMP8936 - 300mA Micropower CMOS Linear Regulator
  • EMP893X - 300mA Micropower CMOS Linear Regulator
  • EMP8995 - 1A CMOS Linear Regulator

Full PDF Text Transcription

Click to expand full text
ESMT/EMP EMP8965 Fast Ultra High-PSRR, Low-Noise, Low-Dropout, 600mA Micropower CMOS Linear Regulator General Description The EMP8965 low-dropout (LDO) CMOS linear regulators feature ultra-high power supply rejection ratio (75dB at 1kHz), low output voltage noise (30µV), low dropout voltage (270mV), low quiescent current (110µA), and fast transient response. It guarantees delivery of 600mA output current, and supports preset output voltages ranging from 1.2V to 3.3V with 0.1V increment (except for 1.85V and 2.85V). EMP products is RoHS compliant. package options are also offered to provide additional flexibility for different applications.
