EMP8966
EMP8966 is 600mA Micropower CMOS Linear Regulator manufactured by Elite Semiconductor Microelectronics Technology.
Description

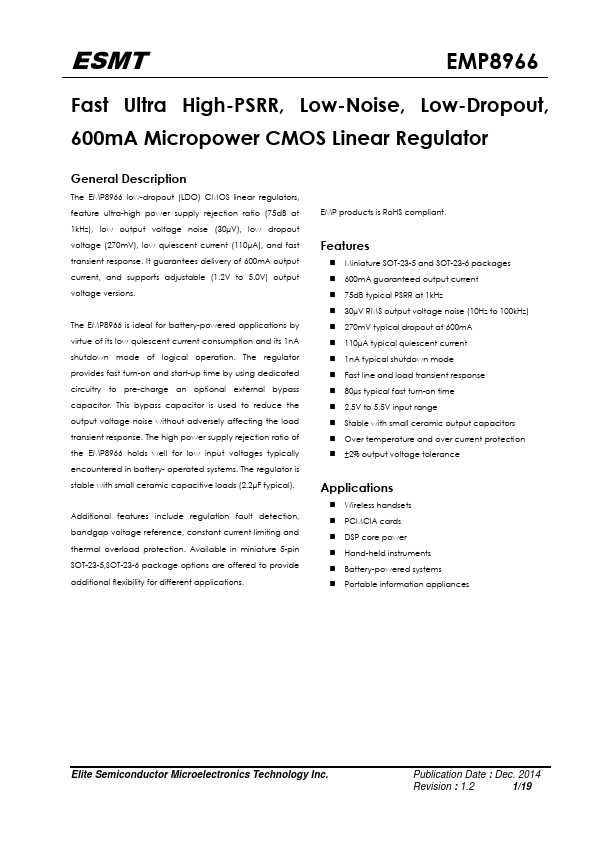

The EMP8966 low-dropout (LDO) CMOS linear regulators, feature ultra-high power supply rejection ratio (75d B at 1k Hz), low output voltage noise (30µV), low dropout voltage (270m V), low quiescent current (110µA), and fast transient response. It guarantees delivery of 600m A output current, and supports adjustable (1.2V to 5.0V) output voltage versions.
The EMP8966 is ideal for battery-powered applications by virtue of its low quiescent current consumption and its 1n A shutdown mode of logical operation. The regulator provides fast turn-on and start-up time by using dedicated circuitry to pre-charge an optional external bypass capacitor. This bypass capacitor is used to reduce the output voltage noise without adversely affecting the load transient response. The high power supply rejection ratio of the EMP8966 holds well for low input voltages typically encountered in battery- operated systems. The regulator is stable with small ceramic capacitive loads (2.2µF typical).
Additional features include regulation fault detection, bandgap voltage reference, constant current limiting and thermal overload protection. Available in miniature 5-pin SOT-23-5,SOT-23-6 package options are offered to provide additional flexibility for different applications.
EMP products is Ro HS pliant.
Features

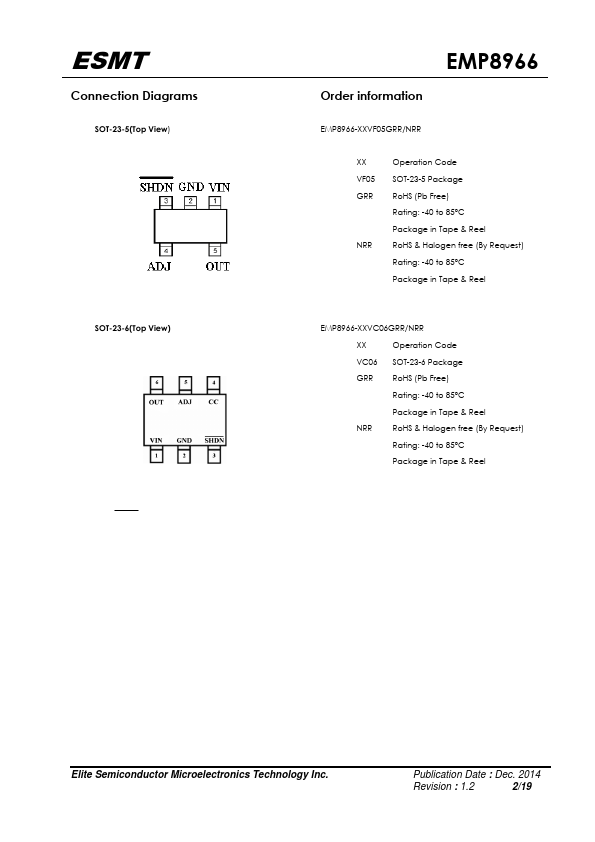

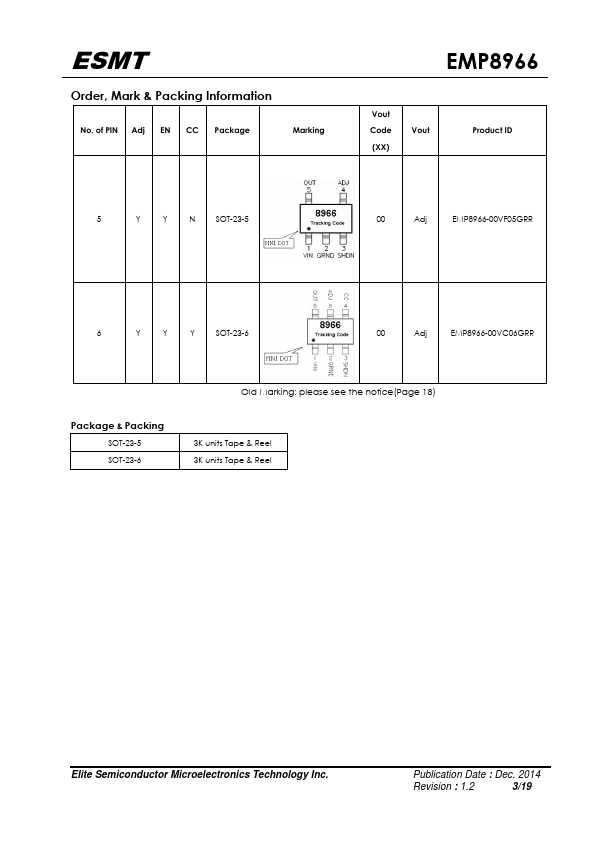

- Miniature SOT-23-5 and SOT-23-6 packages
- 600m A guaranteed output current
- 75d B typical PSRR at 1k Hz
- 30µV RMS output voltage noise (10Hz to 100k Hz)
- 270m V typical dropout at 600m A
- 110µA typical quiescent current
- 1n A typical shutdown mode
- Fast line and load transient response
- 80µs typical fast turn-on time
- 2.5V to 5.5V input range
- Stable with small ceramic output capacitors
- Over temperature and over current protection
- ±2% output voltage tolerance
Applications
- Wireless handsets
- PCMCIA cards
- DSP core power
- Hand-held instruments
- Battery-powered systems
- Portable information appliances
