8m051940
8m051940 is Single Lamp DC to AC Inverter manufactured by Endicott Research Group.

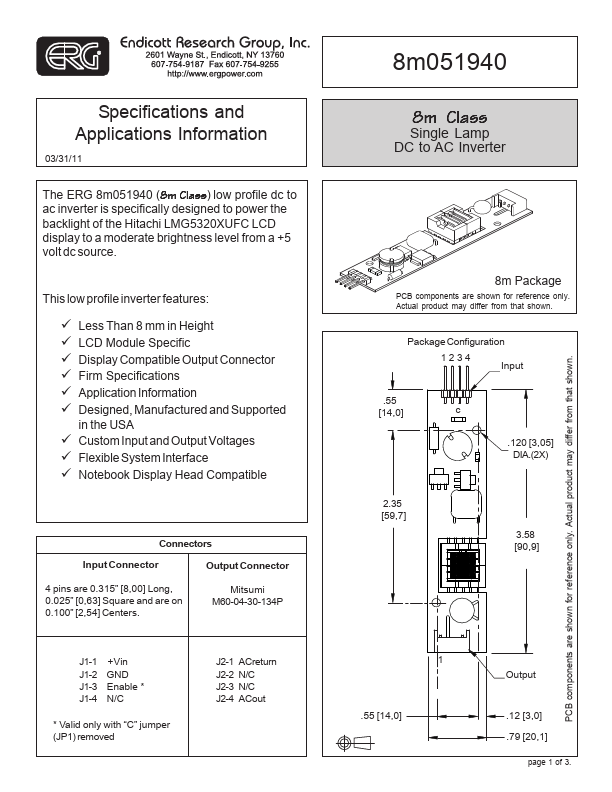

Specifications and Applications Information
03/31/11
The ERG 8m051940 (8m Class) low profile dc to ac inverter is specifically designed to power the backlight of the Hitachi LMG5320XUFC LCD display to a moderate brightness level from a +5 volt dc source.
This low profile inverter Features
:
- Less Than 8 mm in Height
- LCD Module Specific
- Display patible Output Connector
- Firm Specifications
- Application Information
- Designed, Manufactured and Supported in the USA
- Custom Input and Output Voltages
- Flexible System Interface
- Notebook Display Head patible
Connectors
Input Connector
Output Connector
4 pins are 0.315” [8,00] Long, 0.025” [0,63] Square and are on 0.100” [2,54]...
