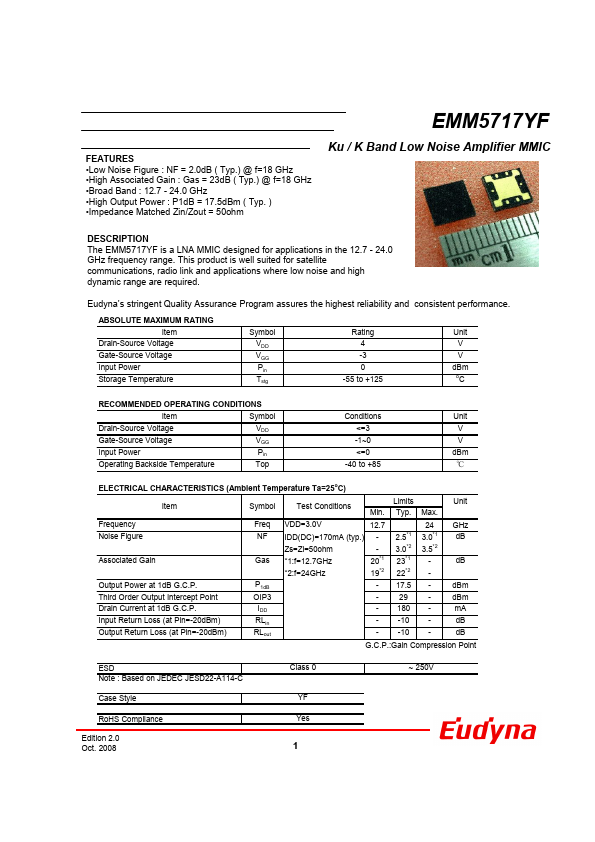

EMM5717YF Overview
Key Specifications
Max Frequency: 24 GHz
Max Operating Temp: 85 °C
Min Operating Temp: -40 °C
Description
The EMM5717YF is a LNA MMIC designed for applications in the 12.7 - 24.0 GHz frequency range. This product is well suited for satellite communications, radio link and applications where low noise and high dynamic range are required.
Key Features
- Low Noise Figure : NF = 2.0dB ( Typ.) @ f=18 GHz
- High Associated Gain : Gas = 23dB ( Typ.) @ f=18 GHz
- Broad Band : 12.7 - 24.0 GHz
- High Output Power : P1dB = 17.5dBm ( Typ. )
- Impedance Matched Zin/Zout = 50ohm EMM5717YF Ku / K Band Low Noise Amplifier MMIC
