FLM5964-18F - C-Band Internally Matched FET

Product Overview

Eudyna Devices

📥 Download Datasheet

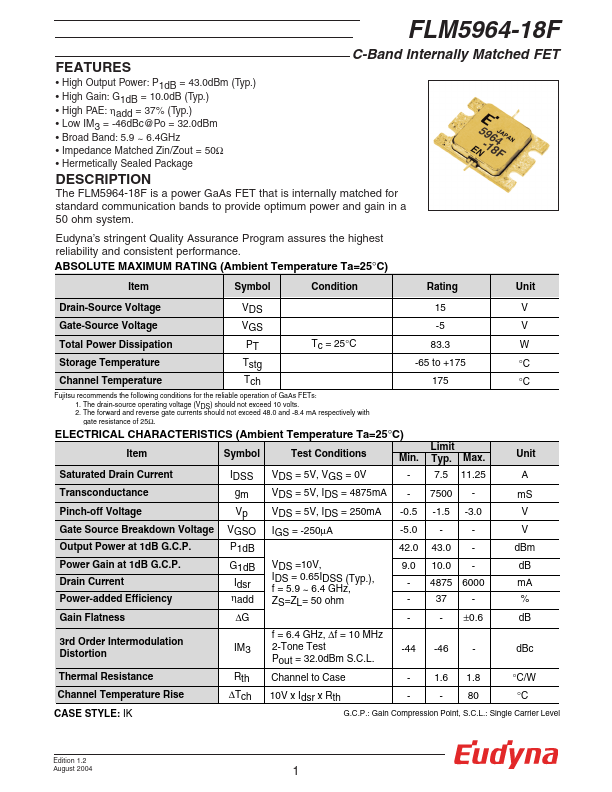

FLM5964-18F C-Band Internally Matched FET by Eudyna Devices - Datasheet Preview — Datasheet preview – FLM5964-18F

Datasheet Details

Part number	FLM5964-18F
Manufacturer	Eudyna Devices
File Size	314.32 KB
Description	C-Band Internally Matched FET
Datasheet	FLM5964-18F Datasheet

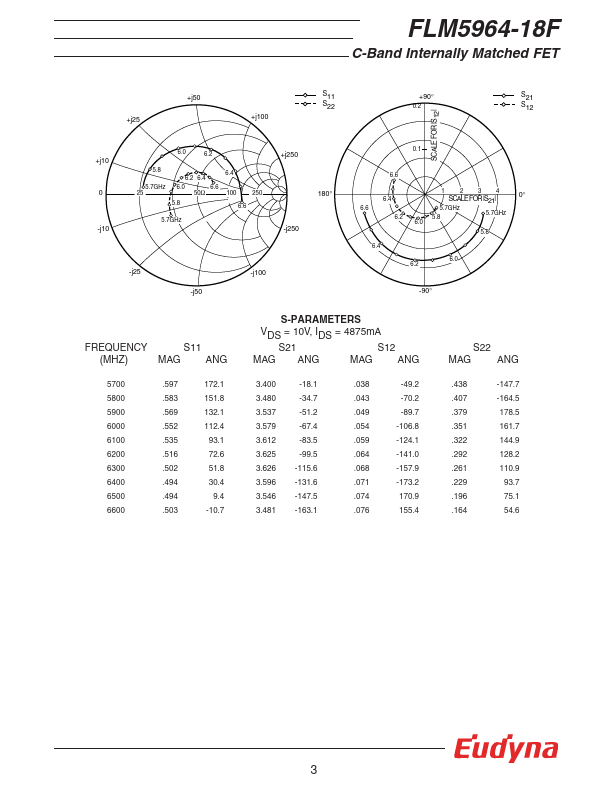

Additional preview pages of the FLM5964-18F datasheet.

Product details

Description

D .

Features

. c.
High Output Power: P1dB = 43.0dBm (Typ. ) U.
High Gain: G1dB = 10.0dB (Typ. ) 4 t.
High PAE: ηadd = 37% (Typ. ) e = 32.0dBm.
Low IM3 = -46dBc@Po e.
Broad Band: 5.9h ~ 6.4GHz S.
Impedance Matched Zin/Zout = 50Ω aSealed Package t.
Hermetically a.
