FLM5964-18F - C-Band Internally Matched FET

Description

The FLM5964-18F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50 ohm system.

Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance.

Features

  • High Output Power: P1dB = 43.0dBm (Typ. ) High Gain: G1dB = 10.0dB (Typ. ) High PAE: ηadd = 37% (Typ. ) Low IM3 = -46dBc@Po = 32.0dBm Broad Band: 5.9 ~ 6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package C-Band Internally Matched FET.

📥 Download Datasheet

Datasheet preview – FLM5964-18F

Datasheet Details

Part number FLM5964-18F
Manufacturer SUMITOMO
File Size 280.28 KB
Description C-Band Internally Matched FET
Datasheet download datasheet FLM5964-18F Datasheet

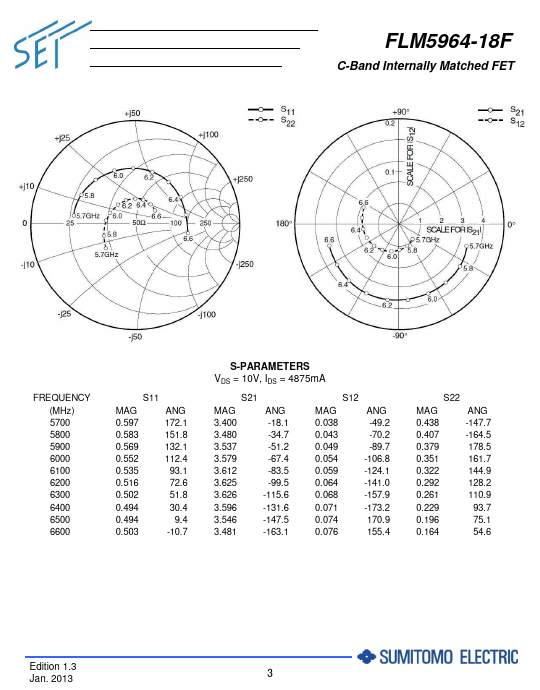

Additional preview pages of the FLM5964-18F datasheet.

📁 Similar Datasheet

  • FLM5964-18F - C-Band Internally Matched FET (Fujitsu)
  • FLM5964-18F - C-Band Internally Matched FET (Eudyna Devices)
  • FLM5964-18DA - Internally Matched Power GaAs FETs (Fujitsu)
  • FLM5964-12DA - Internally Matched Power GaAs FETs (Fujitsu)
  • FLM5964-12F - C-Band Internally Matched FET (Fujitsu)
  • FLM5964-12F - C-Band Internally Matched FET (Eudyna Devices)
  • FLM5964-25DA - Internally Matched Power GaAs FETs (Fujitsu)
  • FLM5964-25F - C-Band Internally Matched FET (Fujitsu)
  • FLM5964-25F - C-Band Internally Matched FET (Eudyna Devices)
  • FLM5964-35DA - Internally Matched Power GaAs FETs (Fujitsu)
Other Datasheets by SUMITOMO

Full PDF Text Transcription

Click to expand full text

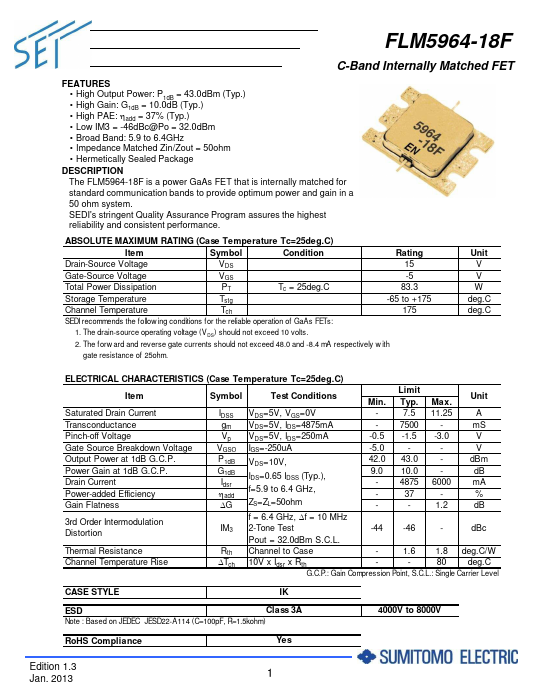

FLM5964-18F FEATURES • • • • • • • High Output Power: P1dB = 43.0dBm (Typ.) High Gain: G1dB = 10.0dB (Typ.) High PAE: ηadd = 37% (Typ.) Low IM3 = -46dBc@Po = 32.0dBm Broad Band: 5.9 ~ 6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package C-Band Internally Matched FET DESCRIPTION The FLM5964-18F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50 ohm system. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. ABSOLUTE MAXIMUM RATING (Ambient Temperature Ta=25°C) Item Drain-Source Voltage Gate-Source Voltage Total Power Dissipation Storage Temperature Channel Temperature Symbol VDS VGS PT Tstg Tch Tc = 25°C Condition Rating 15 -5 83.
