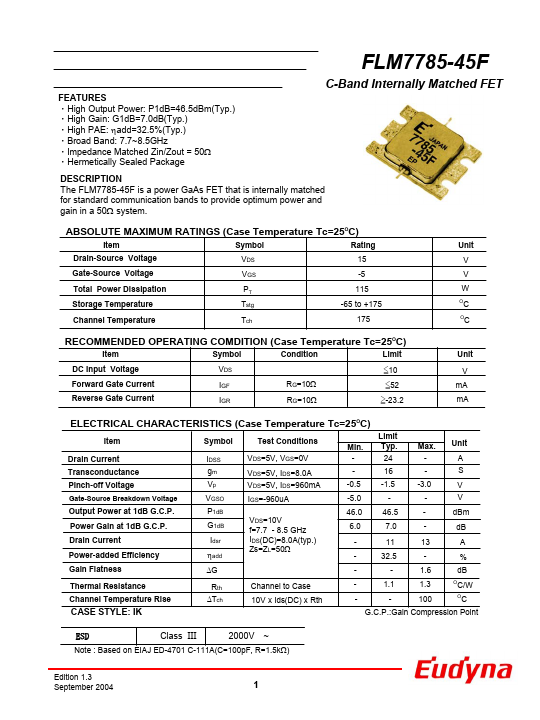

FLM7785-45F
FLM7785-45F is Internally Matched FET manufactured by Eudyna Devices.
FEATURES
- High Output Power: P1d B=46.5d Bm(Typ.)
- High Gain: G1d B=7.0d B(Typ.)
- High PAE: ηadd=32.5%(Typ.)
- Broad Band: 7.7~8.5GHz
- Impedance Matched Zin/Zout = 50Ω
- Hermetically Sealed Package
C-Band Internally Matched FET
DESCRIPTION
The FLM7785-45F is a power Ga As FET that is internally matched for standard munication bands to provide optimum power and gain in a 50Ω system.
ABSOLUTE MAXIMUM RATINGS (Case Temperature Tc=25OC)
Item
Symbol
Rating
Unit
Drain-Source Voltage
Gate-Source Voltage
-5
Total Power Dissipation
Storage Temperature
Tstg
-65 to +175
Channel Temperature
Tch
REMENDED OPERATING DITION (Case Temperature Tc=25OC)
Item
Symbol
Condition
Limit
DC Input Voltage
≤10
Forward Gate...
