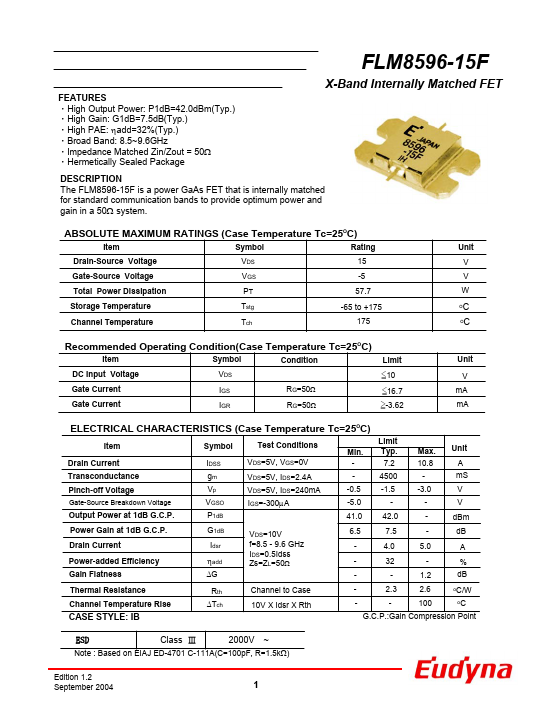

FEATURES - High Output Power: P1d B=42.0d Bm(Typ.) - High Gain: G1d B=7.5d B(Typ.) - High PAE: ηadd=32%(Typ.) - Broad Band: 8.5~9.6GHz - Impedance Matched Zin/Zout = 50Ω - Hermetically Sealed Package X-Band Internally Matched FET DESCRIPTION The FLM8596-15F is a power Ga As FET that is internally matched for standard munication bands to provide optimum power and gain in a 50Ω system. ABSOLUTE MAXIMUM RATINGS (Case Temperature Tc=25OC) Item Drain-Source Voltage Gate-Source Voltage Symbol VDS VGS Rating Unit -5 Total Power Dissipation Storage Temperature Tstg -65 to +175 o C Channel Temperature Tch 175 o C Remended Operating Condition(Case Temperature Tc=25OC) Item Symbol Condition Limit DC Input Voltage ≤10 Gate Current RG=50Ω ≤16.7 Gate...
