FMM5051VF - 13.75-14.5GHz Power Amplifier MMIC

General Description

The FMM5051VF is a MMIC amplifier that contains a three-stage amplifier, internally matched, for standard communications in the www.DataSheet4U.com 13.75 to 14.5GHz frequency range.

This product is well suited for VSAT applications as it offers high power, high gain, and low VSWR.

Key Features

  • High Output Power: 31.5dBm (typ. ) High Linear Gain: 31.5dB (typ. ) Low Input VSWR Broad Band: 13.75 ~ 14.5GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package (VF).

📥 Download Datasheet

Datasheet Details

Part number FMM5051VF
Manufacturer Eudyna Devices
File Size 149.34 KB
Description 13.75-14.5GHz Power Amplifier MMIC
Datasheet download datasheet FMM5051VF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMM5057VF 7.1-8.5GHz Power Amplifier MMIC Fuji Electric
FMM50-025TF Power MOSFET IXYS
FMM5017VF GaAs MMIC Fujitsu Media Devices
FMM5046VF GaAs MMIC Fujitsu Media Devices
FMM5048GJ VSAT MMIC Fujitsu Media Devices

Other Datasheets by Eudyna Devices

Part Number Description
FMM5051VU Power Amplifier MMIC
FMM5052ZE Power Amplifier MMIC
FMM5054VF Power Amplifier MMIC
FMM5056VF Power Amplifier MMIC
FMM5057X Power Amplifier MMIC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

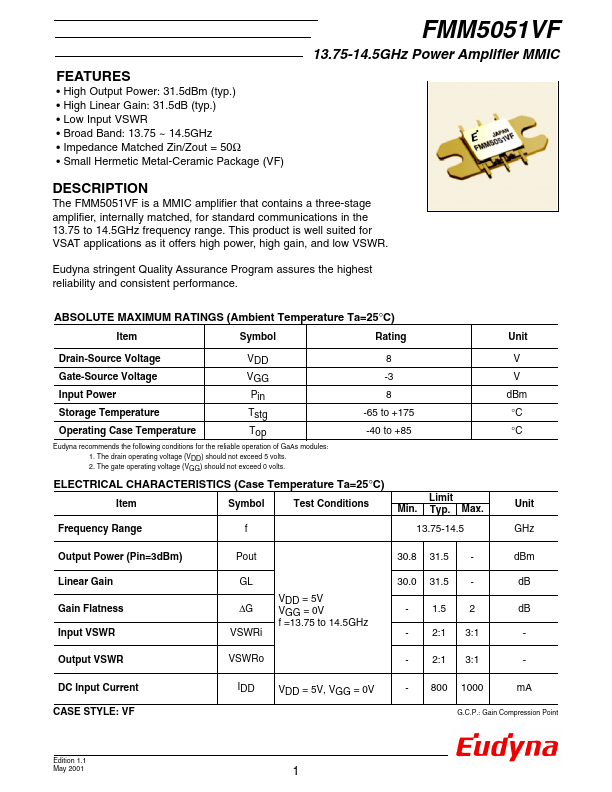

FMM5051VF 13.75-14.5GHz Power Amplifier MMIC FEATURES • • • • • • High Output Power: 31.5dBm (typ.) High Linear Gain: 31.5dB (typ.) Low Input VSWR Broad Band: 13.75 ~ 14.5GHz Impedance Matched Zin/Zout = 50Ω Small Hermetic Metal-Ceramic Package (VF) DESCRIPTION The FMM5051VF is a MMIC amplifier that contains a three-stage amplifier, internally matched, for standard communications in the www.DataSheet4U.com 13.75 to 14.5GHz frequency range. This product is well suited for VSAT applications as it offers high power, high gain, and low VSWR. Fujitsu’s stringent Quality Assurance Program assures the highest reliability and consistent performance.
