• Part: FMM5056X
  • Description: Power Amplifier MMIC
  • Manufacturer: Eudyna Devices
  • Size: 156.38 KB
Download FMM5056X Datasheet PDF

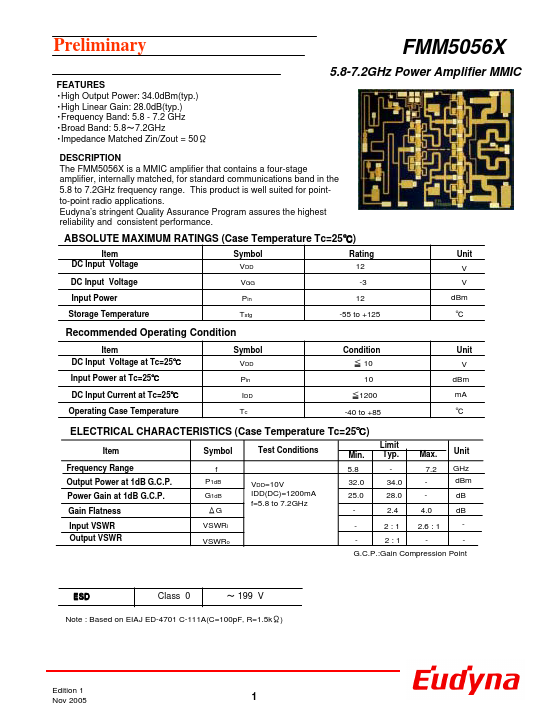

FMM5056X datasheet preview
FMM5056X page 2
Page 2

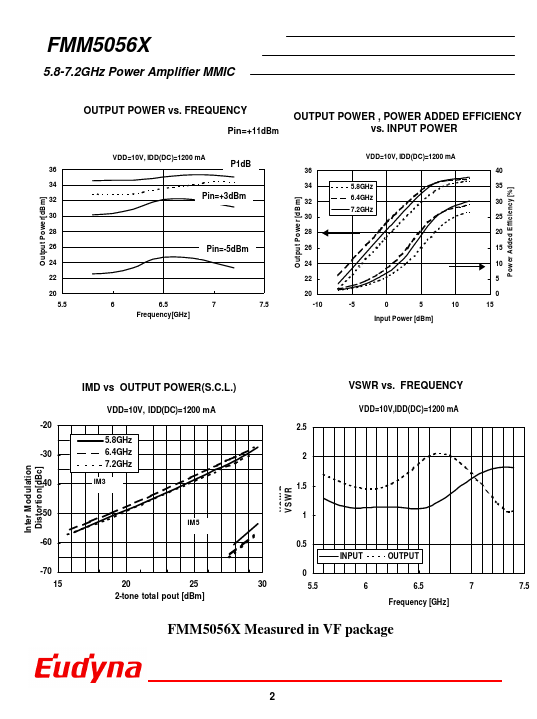

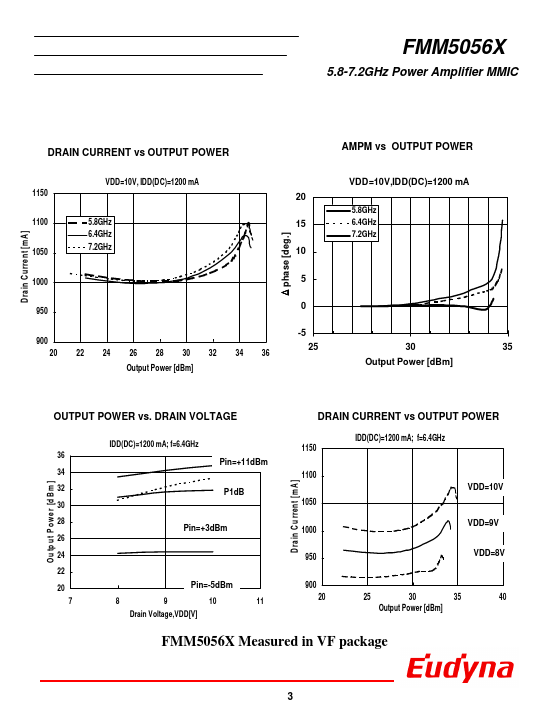

FMM5056X page 3
Page 3

FMM5056X Key Features

  • High Output Power: 34.0dBm(typ.) -High Linear Gain: 28.0dB(typ.) -Frequency Band: 5.8
  • 7.2 GHz -Broad Band: 5.8～7.2GHz -Impedance Matched Zin/Zout = 50Ω
