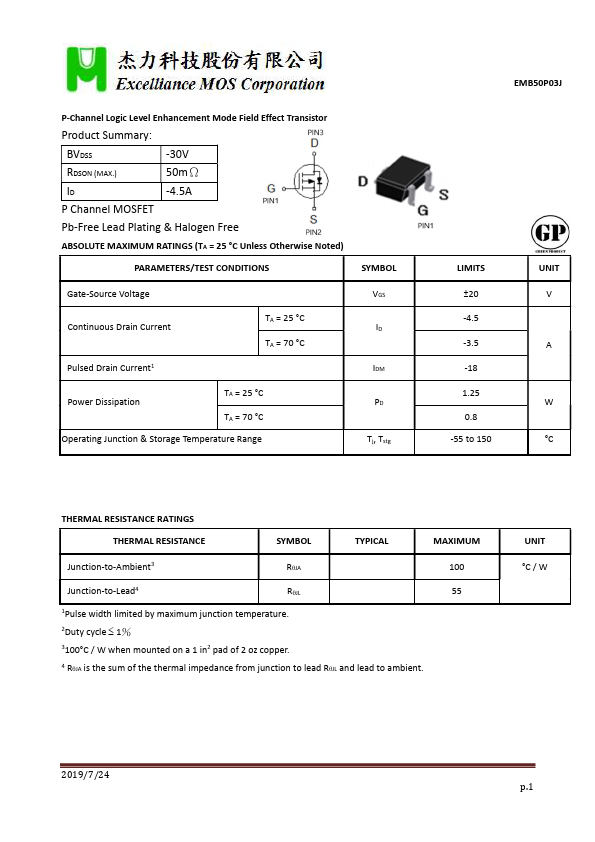

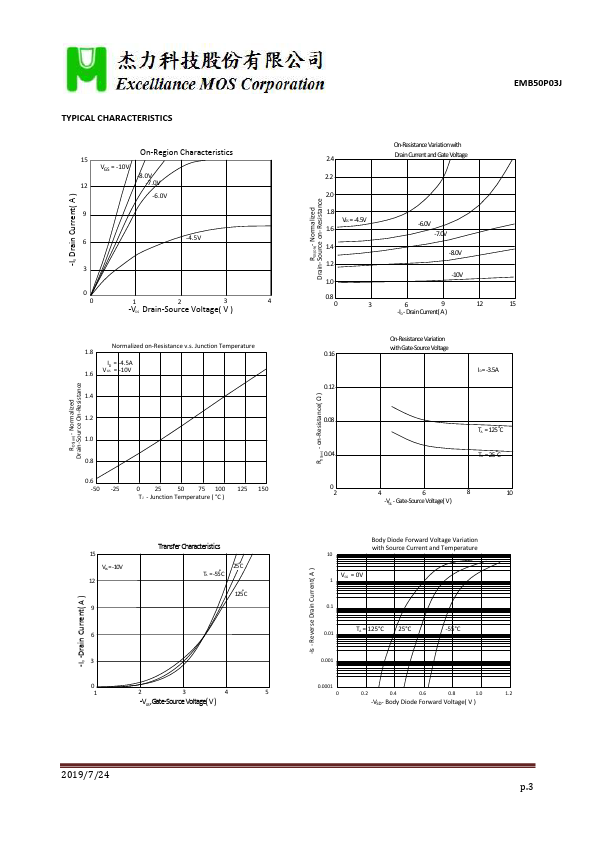

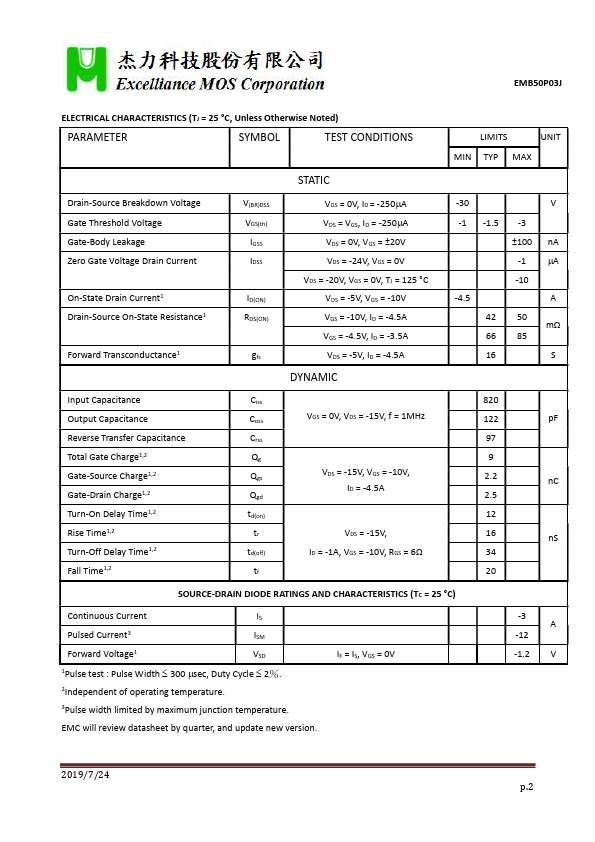

P-Channel Logic Level Enhancement Mode Field Effect Transistor
Product Summary:
BVDSS
-30V
RDSON (MAX.)
50mΩ
ID
-4.5A
P Channel MOSFET
Pb-Free Lead Plating & Halogen Free
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted)
PARAMETERS/TEST CONDITIONS
SYMBOL
Gate-Source Voltage
VGS
Continuous Drain Current Pulsed Drain Current1
TA = 25 °C ID
TA = 70 °C
IDM
Power Dissipation
TA = 25 °C TA = 70 °C
Operating Junction & Storage Temperature Range
PD Tj, Tstg
EMB50P03J
LIMITS ±20 -4.5 -3.5 -18 1.25 0.8
-55 to 150
UNIT V
A
W °C
THERMAL RESISTANCE RATINGS
THERMAL RESISTANCE
SYMBOL
TYPICAL
MAXIMUM
Junction-to-Ambient3
RJA
100
Junction-to-Lead4
RJL
55
1Pulse width limited by maximum junction temperature.
