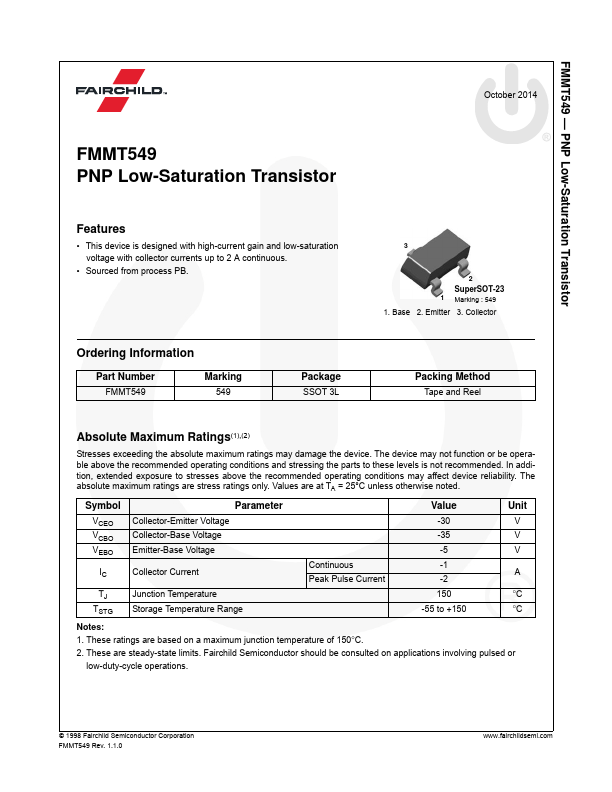

FMMT549
FMMT549
C
E B
SuperSOT -3 (SOT-23)
TM
PNP Low Saturation Transistor
These devices are designed with high current gain and low saturation voltage with collector currents up to 2A continuous.
Absolute Maximum Ratings*
Symbol VCEO VCBO VEBO IC TJ, Tstg Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage
TA = 25°C unless otherwise noted
FMMT549 30 35 5 1 2 -55 to +150
Units V V V A °C
Collector Current - Continuous - Peak Pulse Current Operating and Storage Junction Temperature Range
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150°C. 2) These are steady state limits.
