| Part number | MC7805 |
|---|---|
| Datasheet | MC7805_FairchildSemiconductor.pdf |
| File Size | 225.42 KB |
| Manufacturer | Fairchild (now onsemi) |
| Description | 3-Terminal 1A Positive Voltage Regulator |
|
|

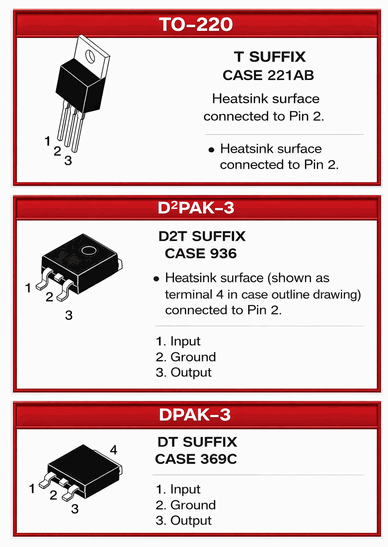

The MC78XX/LM78XX/MC78XXA series of three terminal positive regulators are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current.
| Brand Logo | Part Number | Description | Manufacturer |
|---|---|---|---|
 |
MC7805 | Three Terminal Positive Voltage Regulator | Inchange Semiconductor |
 |
MC7805 | (MC7800 Series) 1A Positive Voltage Regulator | ON Semiconductor |
 |
MC7805 | (MC7800 Series) Three Terminal Positive Fixed Voltage Regulators | Motorola Semiconductor |
