• Part: LM78M05
  • Description: 3-Terminal 0.5A Positive Voltage Regulator
  • Manufacturer: Fairchild Semiconductor
  • Size: 88.88 KB
Download LM78M05 Datasheet PDF
LM78M05 datasheet preview
LM78M05 page 2
Page 2
LM78M05 page 3
Page 3

LM78M05 Datasheet Text

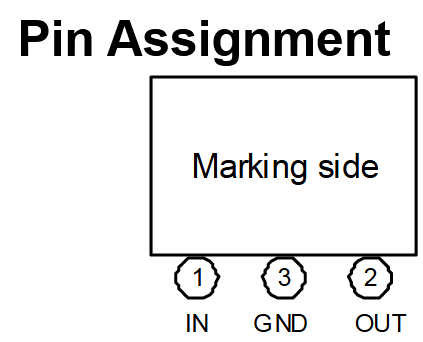

.fairchildsemi. MC78MXX/LM78MXX 3-Terminal 0.5A Positive Voltage Regulator Features - Output Current up to 0.5A - Output Voltages of 5, 6, 8, 12, 15, 18, 24V - Thermal Overload Protection - Short Circuit Protection - Output Transistor Safe Operating Area (SOA)Protection Description The MC78MXX/LM78MXX series of three-terminal positive regulators are available in the TO-220/D-PAK package with several fixed output voltages making it useful in a wide range of applications. TO-220 GND 1 D-PAK GND 1 1. Input 2. GND 3. Output Internal Block Digram INPUT 1 CURRENT GENERATOR STARTING CIRCUIT REFERENCE VOLTAGE SERIES PASS ELEMENT SOA PROTECTION ERROR AMPLIFIER THERMAL PROTECTION ©2002 Fairchild Semiconductor Corporation OUTPUT 3 R1 R2 GND 2...
