LM78M05 - Three-Terminal Positive Voltage Regulator

Features

  • Maximum Output current IOM: 0.5A Output Voltage VO: 5V Continuous Total Dissipation PD: 1.25W 9.70 0.2 1.50 0.15 TO-252 6.50 0.15 5.30 0.2 Unit: mm 2.30 0.1 0.5 0 +0.8 -0.7 5.55 0.15 0.50 0.15 1 2 3 0.127max +0.28 -0.10 0 1.5 0.80 0.1 2.3 0.60 0.10 4.60 0.15 1.IN 2.GND 3.OUT +0.25 -0.10 .65 2 Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM78M05 3-Terminal 0.5A Positive Voltage Regulator Fairchild
LM78M05 THREE TERMINAL POSITIVE VOLTAGE REGULATORS Oucan Semi
LM78M05 3-Terminal 500-mA Positive Voltage Regulators Texas Instruments
LM78M05 3-TERMINAL POSITIVE VOLTAGE REGULATOR HTC
LM78M05-MIL 3-Terminal 500-mA Positive Voltage Regulator Texas Instruments

Other Datasheets by Kexin Semiconductor

Part Number Description
LM78M06 Three-Terminal Positive Voltage Regulator
LM78M08 Three-Terminal Positive Voltage Regulator
LM78M09 Three-Terminal Positive Voltage Regulator
LM78L05 Three Terminal Positive Voltage Regulator
LM78L06 Three-Terminal Positive Voltage Regulator

Full PDF Text Transcription

Click to expand full text

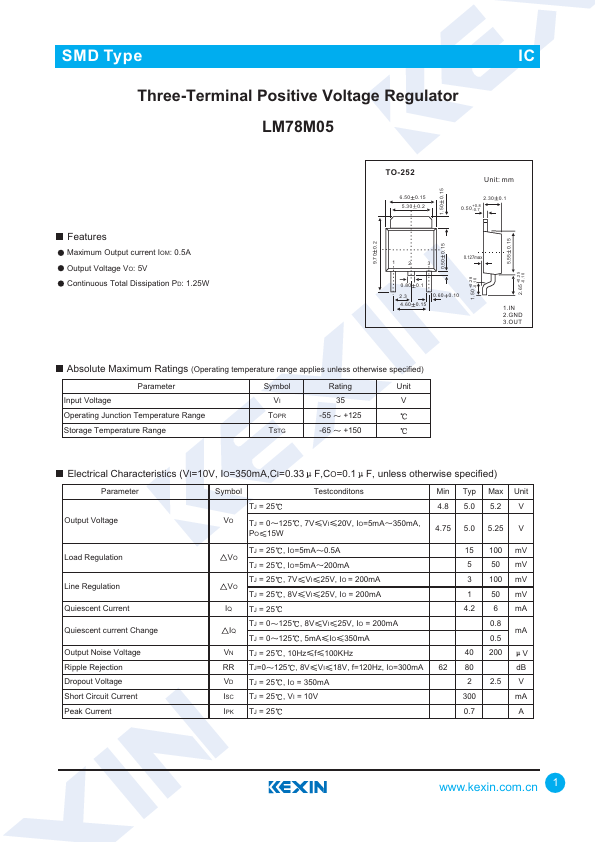

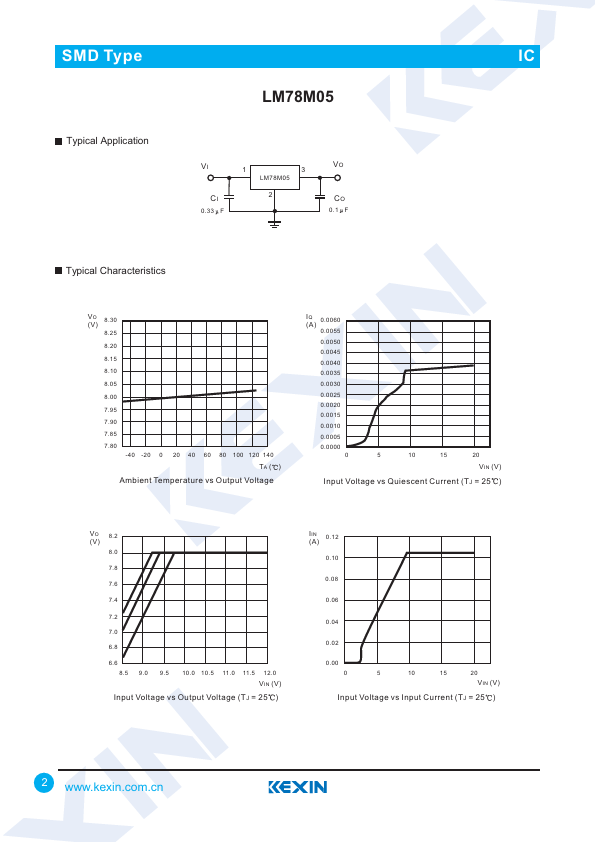

SMD Type IC Three-Terminal Positive Voltage Regulator LM78M05 Features Maximum Output current IOM: 0.5A Output Voltage VO: 5V Continuous Total Dissipation PD: 1.25W 9.70 0.2 1.50 0.15 TO-252 6.50 0.15 5.30 0.2 Unit: mm 2.30 0.1 0.5 0 +0.8 -0.7 5.55 0.15 0.50 0.15 1 2 3 0.127max +0.28 -0.10 0 1.5 0.80 0.1 2.3 0.60 0.10 4.60 0.15 1.IN 2.GND 3.OUT +0.25 -0.10 .65 2 Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified) Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range Symbol Rating Unit VI 35 V TOPR -55 +125 TSTG -65 +150 Electrical Characteristics (VI=10V, IO=350mA,CI=0.33 F,CO=0.
