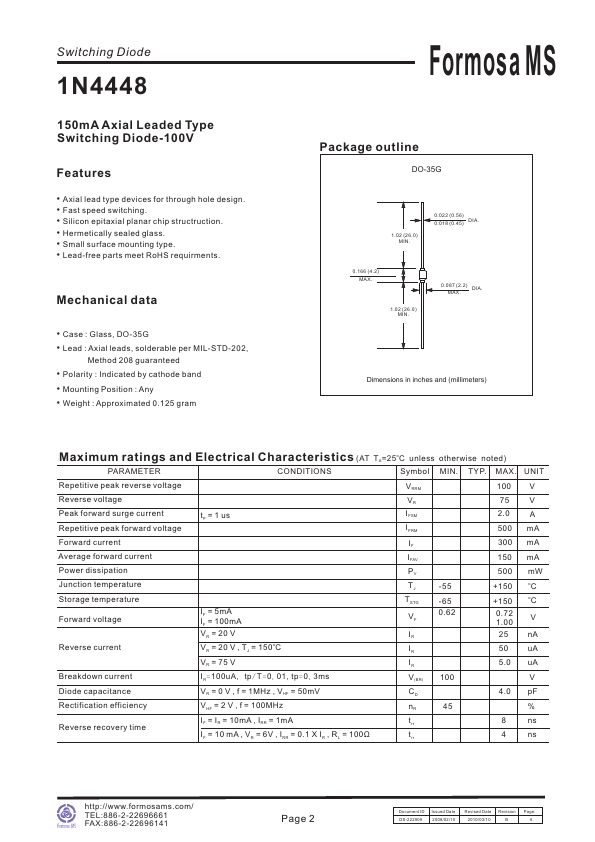

1N4448
Features
- Axial lead type devices for through hole design.
- Fast speed switching.
- Silicon epitaxial planar chip structruction.
- Hermetically sealed glass.
- Small surface mounting type.
- Lead-free parts meet Ro HS requirments.
Mechanical data
- Case : Glass, DO-35G
- Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guaranteed
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight : Approximated 0.125 gram
Formosa MS

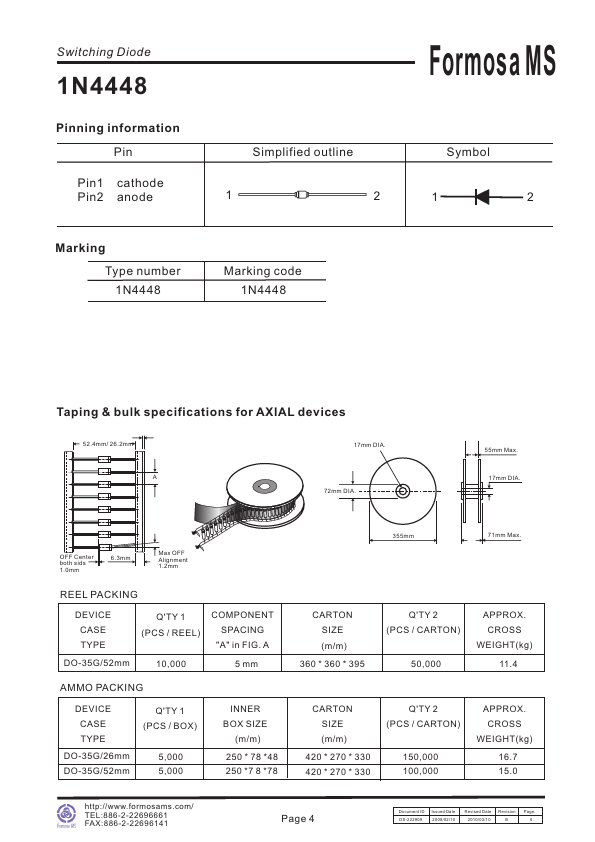

Package outline
DO-35G
1.02 (26.0) MIN.
0.022 (0.56) 0.018 (0.45) DIA.
0.166 (4.2) MAX.
1.02 (26.0) MIN.
0.087 (2.2) DIA.
MAX.
Dimensions in inches and (millimeters)

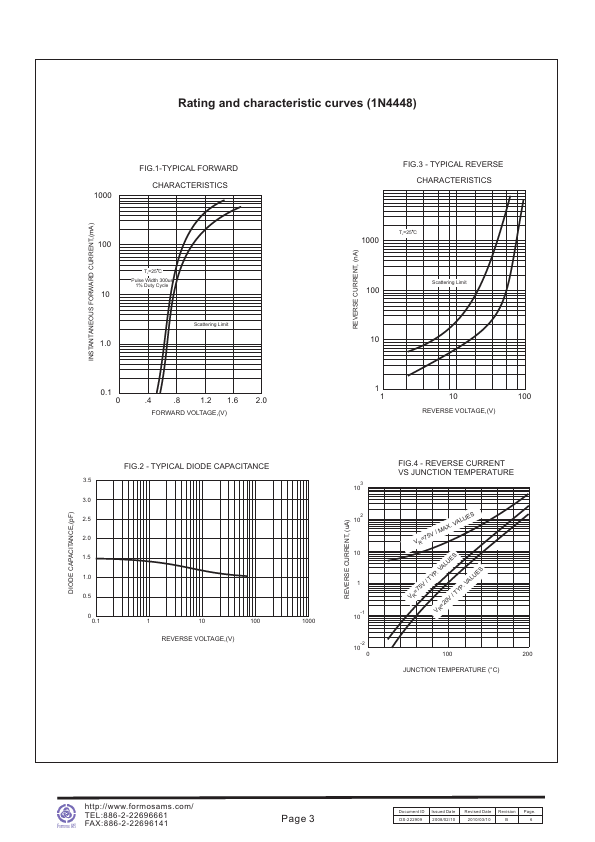

Maximum ratings and Electrical Characteristics (AT TA=25o C unless otherwise noted)
PARAMETER
CONDITIONS
Symbol MIN. TYP. MAX. UNIT
Repetitive peak reverse voltage Reverse voltage Peak forward surge current Repetitive peak forward voltage tp = 1 us
VRRM VR IFSM IFRM
100 V 75 V 2.0 A 500 m A
Forward current Average forward current Power dissipation Junction...
Representative 1N4448 image (package may vary by manufacturer)
