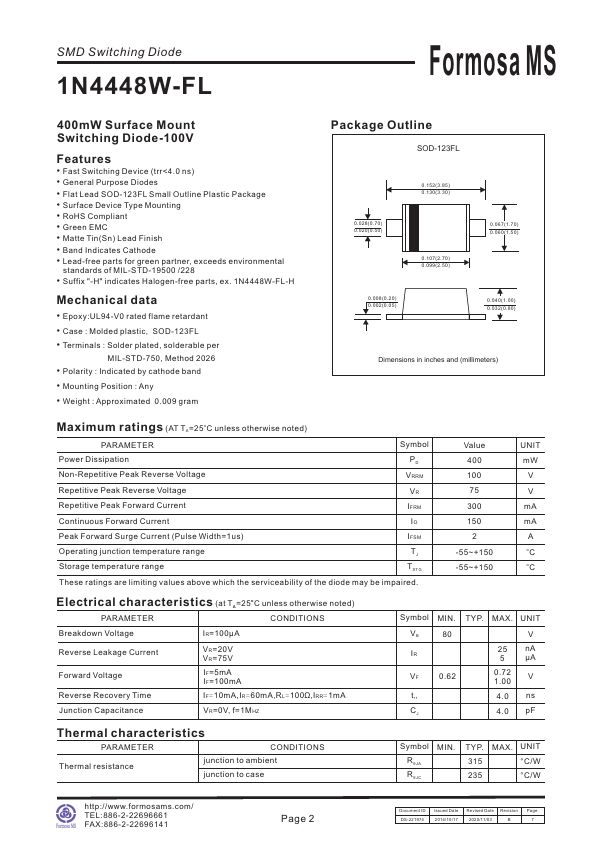

1N4448W-FL
1N4448W-FL is SMD Switching Diode manufactured by Formosa MS.
SMD Switching Diode
Formosa MS
400m W Surface Mount Switching Diode-100V
Features
- Fast Switching Device (trr<4.0 ns)
- General Purpose Diodes
- Flat Lead SOD-123FL Small Outline Plastic Package
- Surface Device Type Mounting
- Ro HS pliant
- Green EMC
- Matte Tin(Sn) Lead Finish
- Band Indicates Cathode
- Lead-free parts for green partner, exceeds environmental standards of MIL-STD-19500 /228
- Suffix "-H" indicates Halogen-free parts, ex. 1N4448W-FL-H
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-123FL
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight : Approximated 0.009 gram
Package Outline
SOD-123FL
0.028(0.70) 0.020(0.50)
0.152(3.85) 0.130(3.30)
0.107(2.70) 0.099(2.50)
0.008(0.20) 0.002(0.05)
0.067(1.70) 0.060(1.50)
0.040(1.00)...
