1N4743A

Manufacturer: Formosa MS

This datasheet includes multiple variants, all published together in a single manufacturer document.

1N4743A datasheet preview

Datasheet Details

Part number	1N4743A
Datasheet	1N4743A 1N4728A Datasheet (PDF)
File Size	253.55 KB
Manufacturer	Formosa MS
Description	Axial Lead Zener Diode

1N4743A Overview

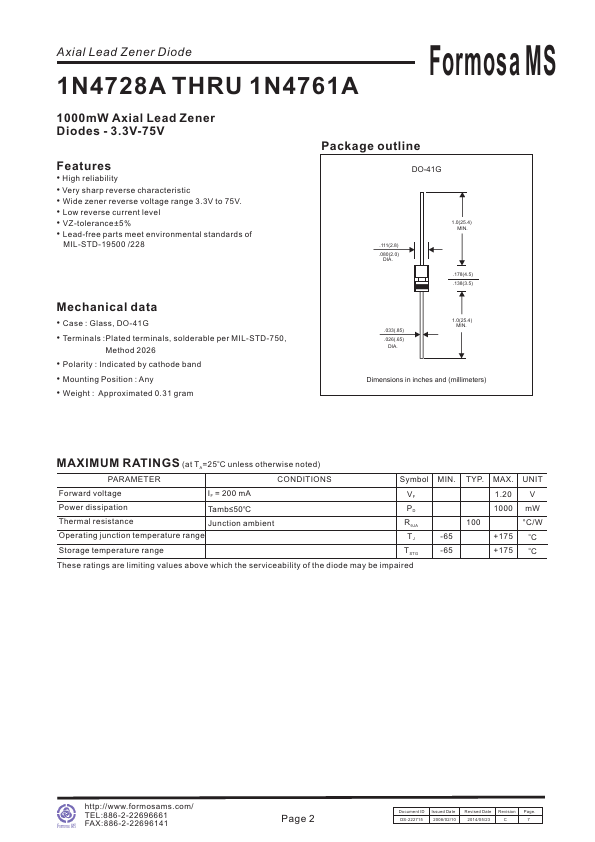

Axial Lead Zener Diode 1N4728A THRU 1N4761A Formosa MS 1000mW Axial Lead Zener Diodes - 3.3V-75V.

1N4743A Key Features

High reliability
Very sharp reverse characteristic
Wide zener reverse voltage range 3.3V to 75V
Low reverse current level
VZ-tolerance±5%
Case : Glass, DO-41G
Terminals :Plated terminals, solderable per MIL-STD-750
Polarity : Indicated by cathode band
Mounting Position : Any
Weight : Approximated 0.31 gram
