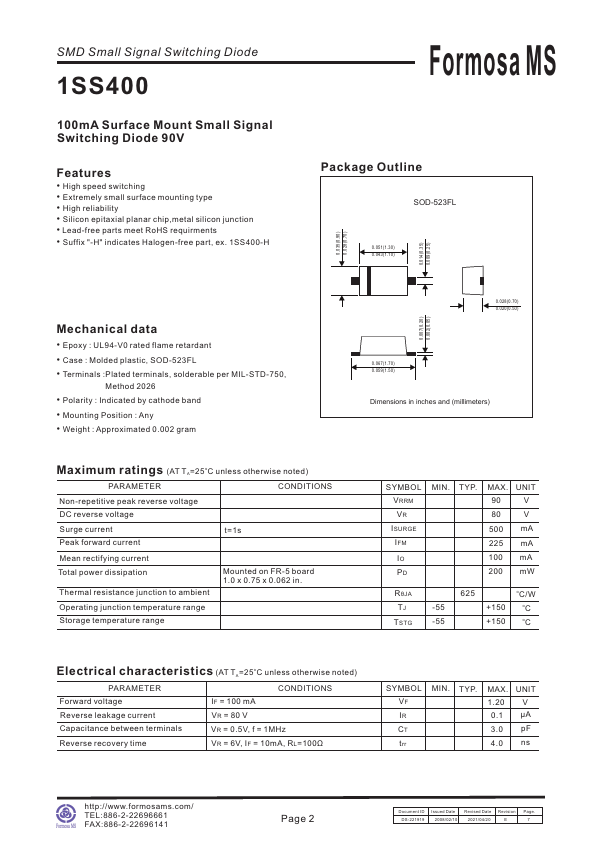

1SS400 Datasheet | Formosa MS

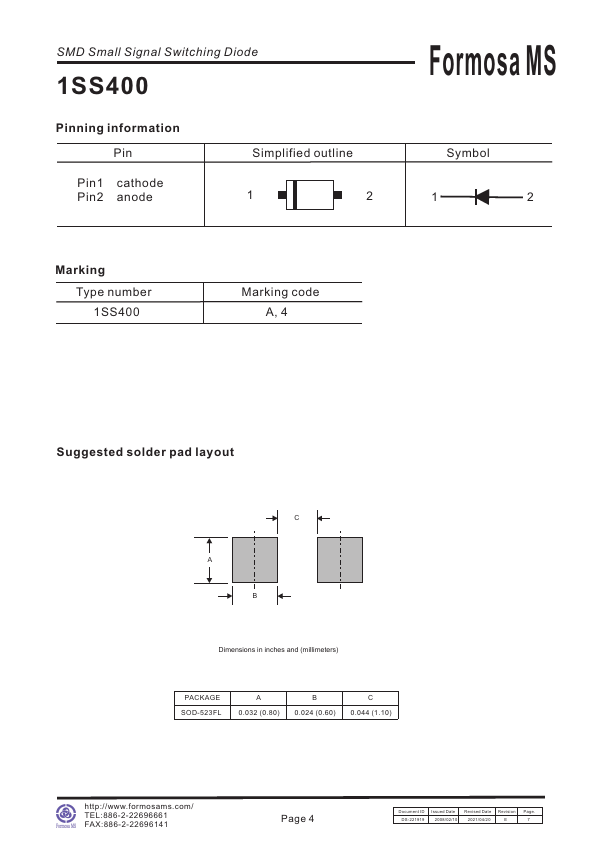

Features - High speed switching - Extremely small surface mounting type - High reliability - Silicon epitaxial planar chip,metal silicon junction - Lead-free parts meet Ro HS requirments - Suffix "-H" indicates Halogen-free part, ex. 1SS400-H 0.035(0.90) 0.028(0.70) Formosa MS Package Outline SOD-523FL 0.051(1.30) 0.043(1.10) 0.014(0.35) 0.009(0.25) Mechanical data - Epoxy : UL94-V0 rated flame retardant - Case : Molded plastic, SOD-523FL - Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.002 gram Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER CONDITIONS Non-repetitive peak reverse voltage DC reverse voltage Surge current Peak forward current t=1s Mean rectifying current Total power dissipation Thermal resistance junction to ambient Mounted on FR-5 board 1.0 x 0.75 x 0.062 in. Operating junction temperature range Storage temperature range 0.007(0.20) 0.002(0.05) 0.028(0.70) 0.020(0.50) 0.067(1.70) 0.059(1.50) Dimensions in inches and (millimeters) SYMBOL VRRM VR ISURGE IFM IO PD MIN. TYP. MAX. UNIT 500 m...
