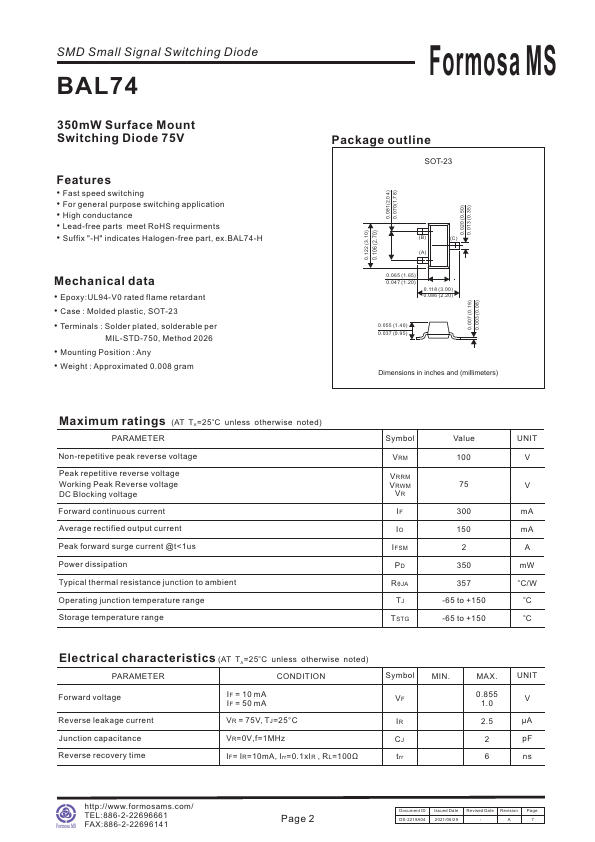

Formosa MS BAL74
SMD Small Signal Switching Diode
| Part No. | BAL74 |
|---|---|
| Datasheet | BAL74 Download |
| Manufacturer |  Formosa MS |
| Description | SMD Small Signal Switching Diode |
| Buy | Stock & Price |
FEATURES
● Fast speed switching● For general purpose switching application
● High conductance
● Lead-free parts meet RoHS requirments
● Suffix "-H" indicates Halogen-free part, ex.BAL74-H Mechanical data
● Epoxy:UL94-V0 rated flame retardant
● Case : Molded plastic, SOT-23
● Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
● Mounting Position : Any
● Weight : Approximated 0.008 gram Formosa MS Package outline SOT-23 0.081(2.04) 0.070(1.78) 0.020 (0.50) 0.013 (0.35) 0.122 (3.10) 0.106 (2.70) (B) (C) (A) 0.065 (1.65) 0.047 (1.20) 0.118 (3.00) 0.086 (2.20) 0.055 (1.40) 0.037 (0.95) 0.007 (0.19) 0.003 (0.08) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25oC unless otherwise noted) PARAMETER Non-repetitive peak reverse voltage Peak repetitive reverse voltage Working Peak Reverse voltage DC Blocking voltage Forward continuous current Average rectified output current Peak forward surge current @t<1us Power dissipation Typical thermal resistance junction to...
