| Part number | BAL74 |
|---|---|
| Datasheet | BAL74-Zetex.pdf |
| File Size | 52.10 KB |
| Manufacturer | Zetex (now Diodes Incorporated) |
| Description | SOT23 HIGH SPEED SWITCHING DIODES |
|
|

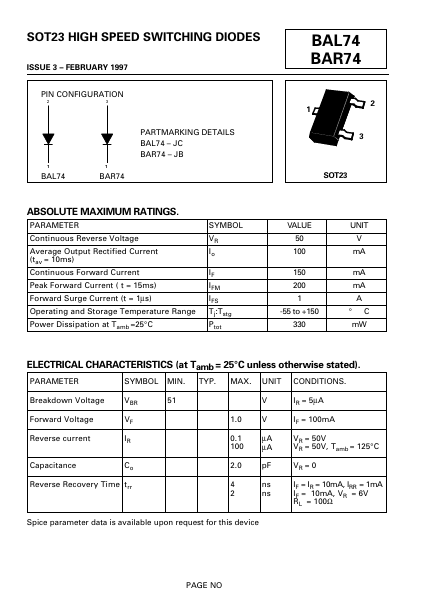

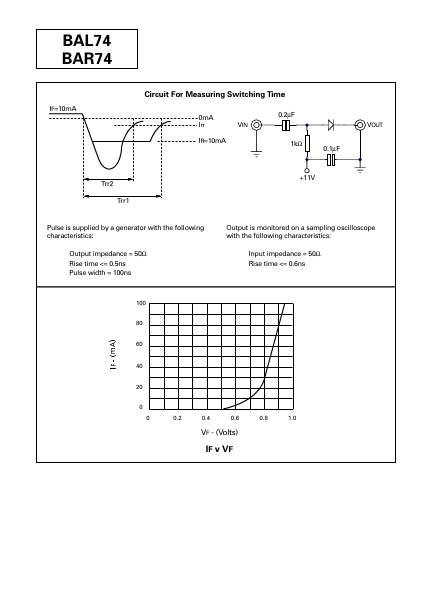

SOT23 HIGH SPEED SWITCHING DIODES ISSUE 3 FEBRUARY 1997 ! BAL74 BAR74 PARTMARKING DETAILS BAL74 JC BAR74 JB BAL74 BAR74 2 1 3 SOT23 RATINGS. Output impedance = 50Ω Rise time <= 0.5ns Pulse width = 100ns Output is monitored on a sampling oscilloscope with the following characteristics:.
