BAL99-Q1 Datasheet | Formosa MS

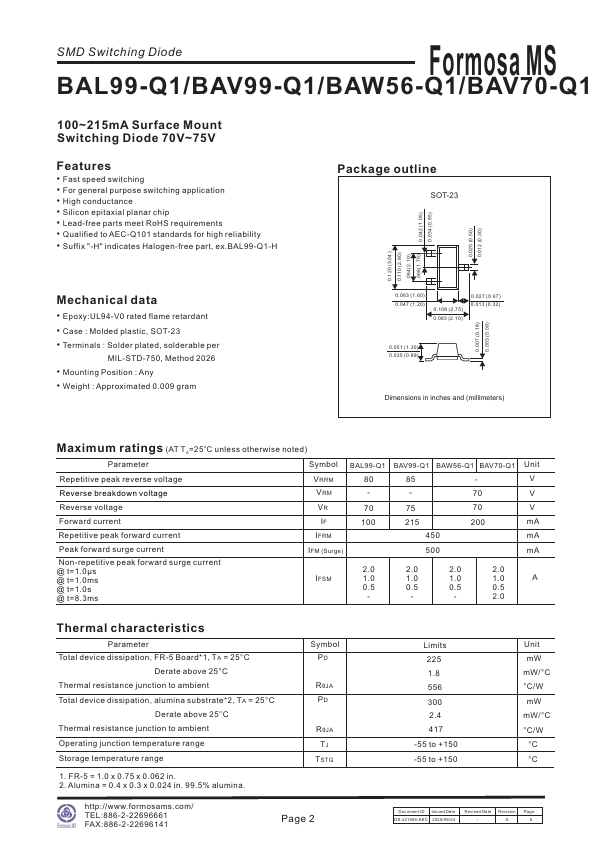

Features - Fast speed switching - For general purpose switching application - High conductance - Silicon epitaxial planar chip - Lead-free parts meet Ro HS requirements - Qualified to AEC-Q101 standards for high reliability - Suffix "-H" indicates Halogen-free part, ex.BAL99-Q1-H Package outline SOT-23 0.042 (1.05) 0.034 (0.85) 0.020 (0.50) 0.012 (0.30) 0.120 (3.04) 0.110 (2.80) .084(2.10) .068(1.70) Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-23 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.009 gram 0.063 (1.60) 0.047 (1.20) 0.108 (2.75) 0.083 (2.10) 0.027 (0.67) 0.013 (0.32) 0.007 (0.18) 0.003 (0.09) 0.051 (1.30) 0.035 (0.89) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) Parameter Symbol BAL99-Q1 BAV99-Q1 BAW56-Q1 BAV70-Q1 Unit Repetitive peak reverse voltage VRRM - V Reverse breakdown voltage - - Reverse...
