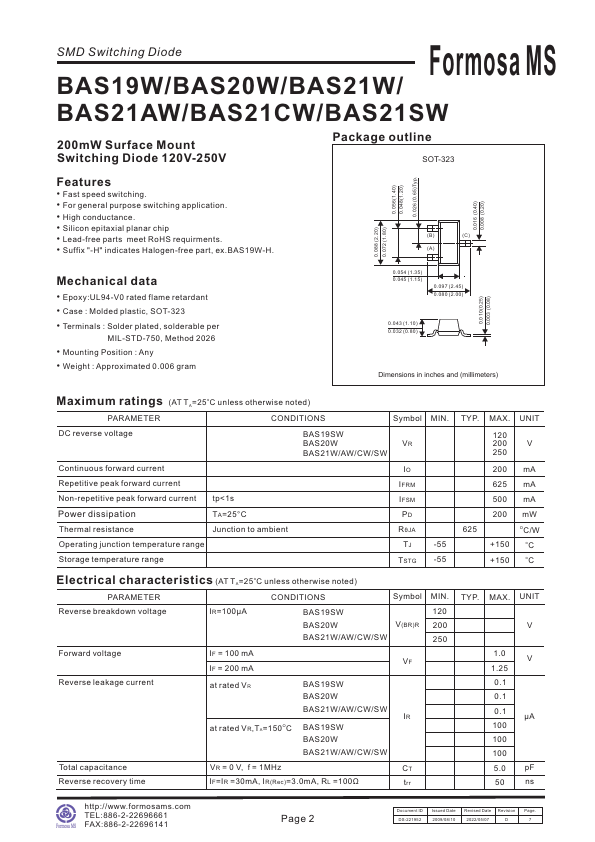

BAS21AW Overview
SMD Switching Diode Formosa MS BAS19W/BAS20W/BAS21W/ BAS21AW/BAS21CW/BAS21SW 200mW Surface Mount Switching Diode 120V-250V Package outline SOT-323 0.016 (0.40) 0.008.
BAS21AW Key Features
- Fast speed switching
- For general purpose switching application
- High conductance
- Silicon epitaxial planar chip
- Lead-free parts meet RoHS requirments
- Suffix "-H" indicates Halogen-free part, ex.BAS19W-H
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-323
- Mounting Position : Any
- Weight : Approximated 0.006 gram
