BAV70DW Overview

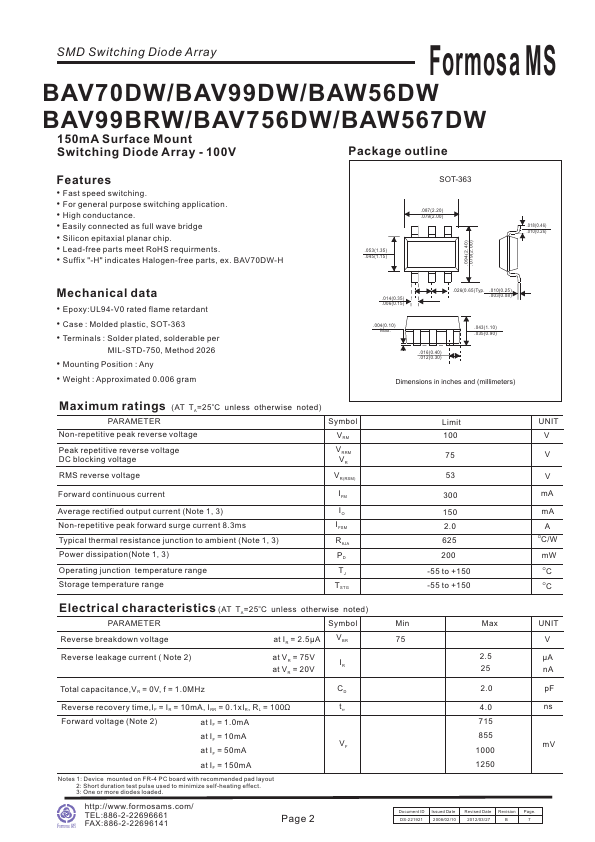

SMD Switching Diode Array Formosa MS BAV70DW/BAV99DW/BAW56DW BAV99BRW/BAV756DW/BAW567DW 150mA Surface Mount Switching Diode Array - 100V Package outline.
BAV70DW Key Features
- Fast speed switching
- For general purpose switching application
- High conductance
- Easily connected as full wave bridge
- Silicon epitaxial planar chip
- Lead-free parts meet RoHS requirments
- Suffix "-H" indicates Halogen-free parts, ex. BAV70DW-H
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-363
- Mounting Position : Any
