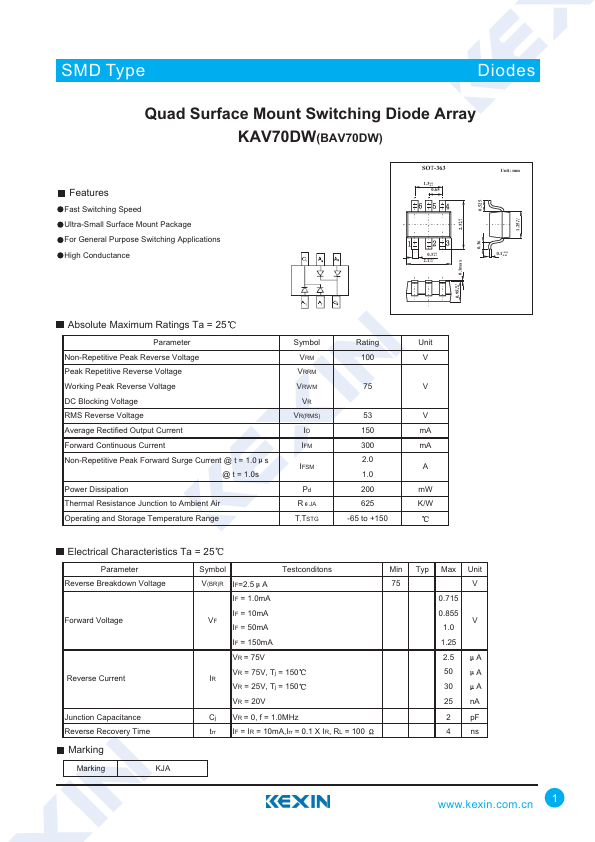

BAV70DW
BAV70DW is Quad Surface Mount Switching Diode Array manufactured by Kexin Semiconductor.
SMD Type
Diodes
Quad Surface Mount Switching Diode Array KAV70DW(BAV70DW)
Features
Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance
SOT-363
1.3+0.1 -0.1 0.65
Unit: mm
+0.15 2.3 -0.15
0.3+0.1 -0.1
2.1+0.1 -0.1
0.1+0.05 -0.02
+0.1 1.25 -0.1
0.1max
+0.05 0.95...
