FM1150-M-Q1 Overview

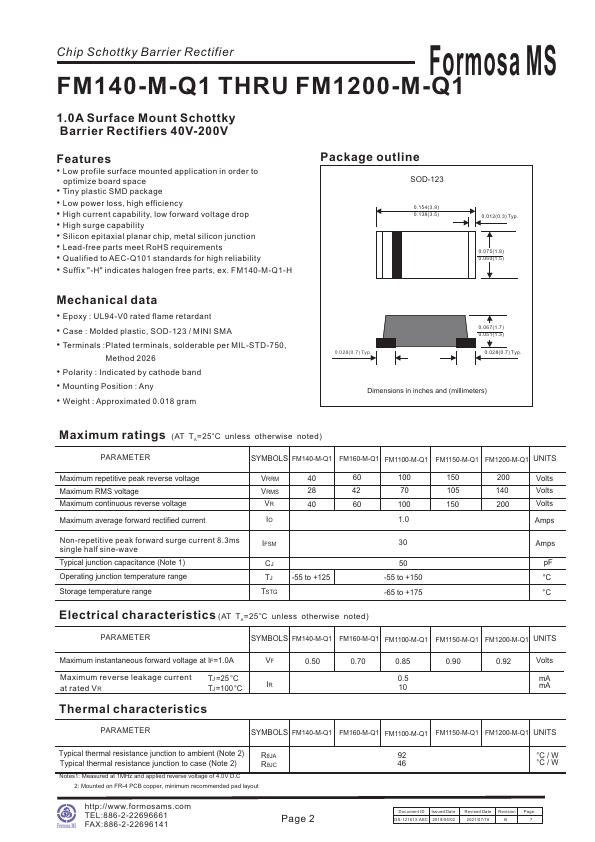

Chip Schottky Barrier Rectifier Formosa MS FM140-M-Q1 THRU FM1200-M-Q1 1.0A Surface Mount Schottky Barrier Rectifiers 40V-200V.
FM1150-M-Q1 Key Features
- Tiny plastic SMD package
- Low power loss, high efficiency
- High current capability, low forward voltage drop
- High surge capability
- Silicon epitaxial planar chip, metal silicon junction
- Lead-free parts meet RoHS requirements
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates halogen free parts, ex. FM140-M-Q1-H
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-123 / MINI SMA
