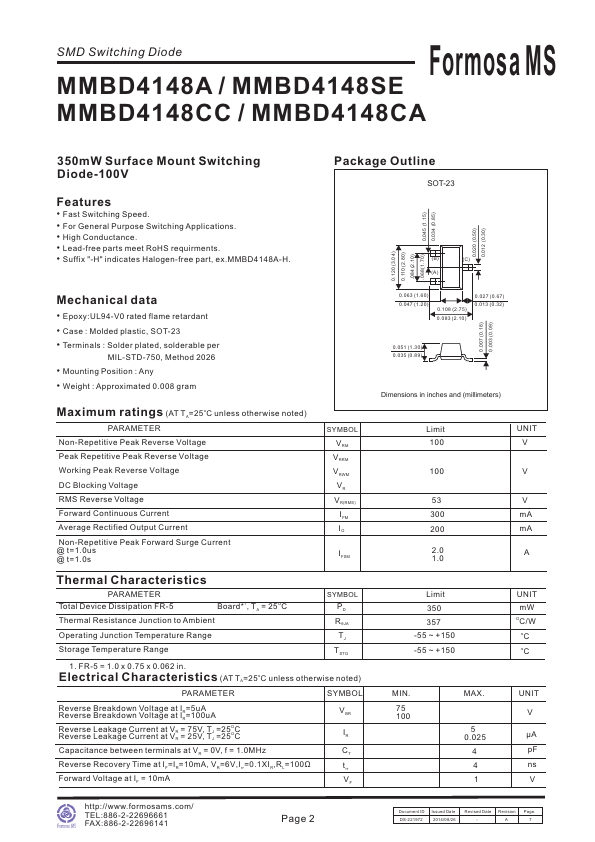

MMBD4148SE
MMBD4148SE is SMD Switching Diode manufactured by Formosa MS.
- Part of the MMBD4148A comparator family.
- Part of the MMBD4148A comparator family.
Features
- Fast Switching Speed.
- For General Purpose Switching Applications.
- High Conductance.
- Lead-free parts meet Ro HS requirments.
- Suffix "-H" indicates Halogen-free part, ex.MMBD4148A-H.
Package Outline
SOT-23
0.045 (1.15) 0.034 (0.85)
(B)
(C)
(A)
0.020 (0.50) 0.012 (0.30)
0.120 (3.04) 0.110 (2.80) .084(2.10) .068(1.70)
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-23
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.008 gram
Maximum ratings (AT TA=25o C unless otherwise noted)
PARAMETER Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @ t=1.0us @ t=1.0s
SYMBOL VRM VRRM VRWM VR VR(RMS) IFM IO
IFSM
Thermal Characteristics
PARAMETER Total Device Dissipation FR-5
Board- 1, TA = 25OC
Thermal Resistance Junction to Ambient
Operating Junction Temperature...
