UDZ10B-FL-Q1
UDZ10B-FL-Q1 is SMD Zener Diode manufactured by Formosa MS.
- Part of the UDZ2.4B-FLQ1 comparator family.
- Part of the UDZ2.4B-FLQ1 comparator family.
SMD Zener Diode
Formosa MS

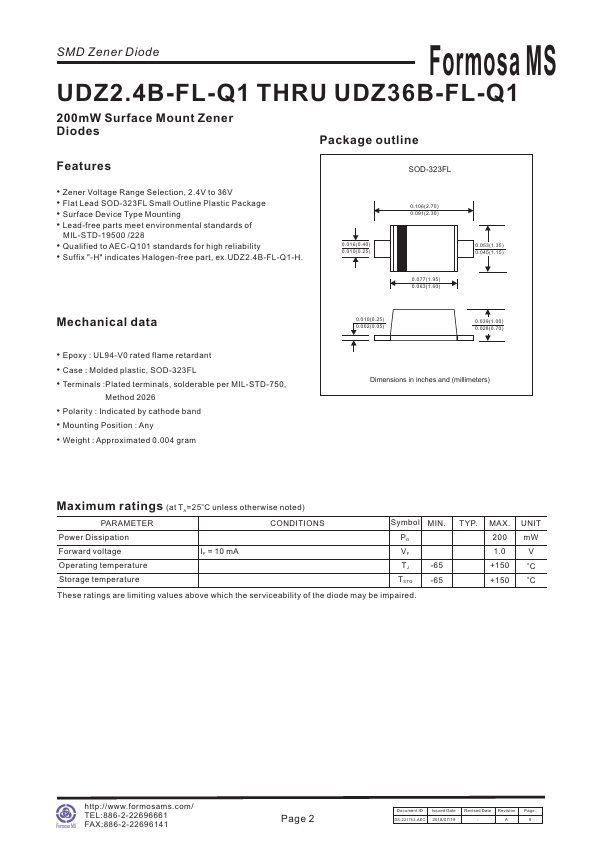

UDZ2.4B-FL-Q1 THRU UDZ36B-FL-Q1
200mW Surface Mount Zener Diodes
Package outline
Features
- Zener Voltage Range Selection, 2.4V to 36V
- Flat Lead SOD-323FL Small Outline Plastic Package
- Surface Device Type Mounting
- Lead-free parts meet environmental standards of
MIL-STD-19500 /228
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates Halogen-free part, ex.UDZ2.4B-FL-Q1-H.
0.016(0.40) 0.010(0.25)
SOD-323FL
0.106(2.70) 0.091(2.30)
0.053(1.35) 0.045(1.15)
0.077(1.95) 0.063(1.60)
Mechanical data
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-323FL
- Terminals :Plated terminals, solderable per...
