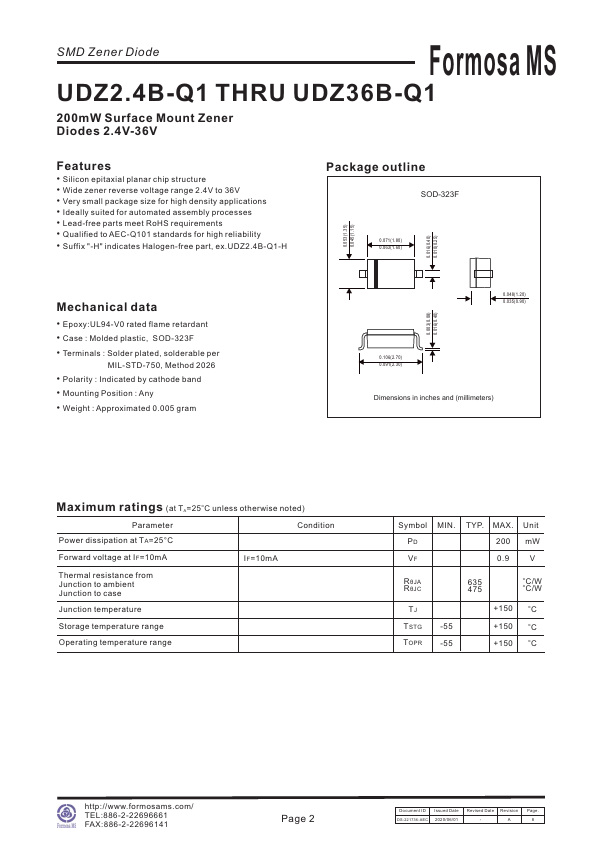

SMD Zener Diode Formosa MS UDZ2.4B-Q1 THRU UDZ36B-Q1 200mW Surface Mount Zener Diodes 2.4V-36V Features - Silicon epitaxial planar chip structure - Wide zener reverse voltage range 2.4V to 36V - Very small package size for high density applications - Ideally suited for automated assembly processes - Lead-free parts meet RoHS requirements - Qualified to AEC-Q101 standards for high reliability - Suffix "-H" indicates Halogen-free part, ex.UDZ2.4B-Q1-H 0.053(1.35) 0.045(1.15) Package outline SOD-323F 0.071(1.80) 0.063(1.60) 0.016(0.40) 0.010(0.25) Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOD-323F - Terminals : Solder plated, solderable...
