UDZ12B Description

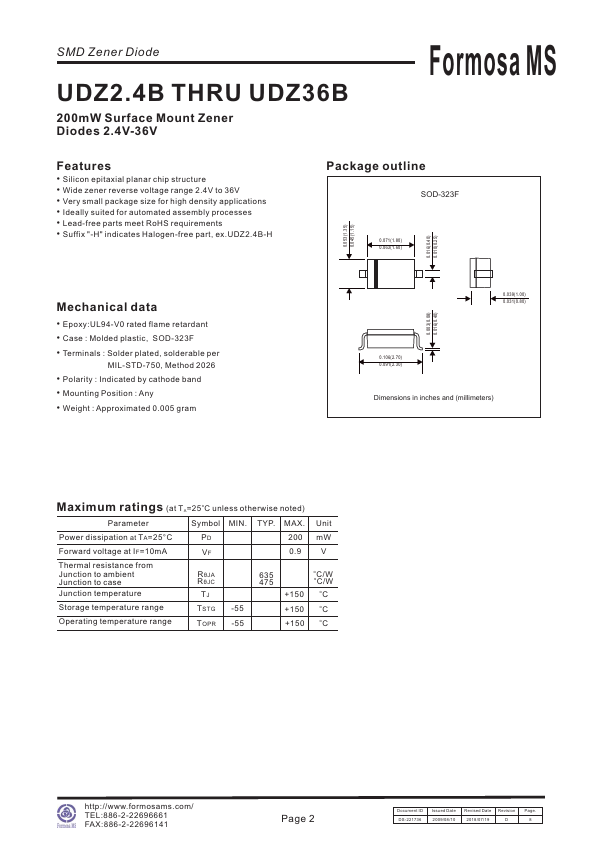

SMD Zener Diode UDZ2.4B THRU UDZ36B 200mW Surface Mount Zener Diodes 2.4V-36V Formosa.
UDZ12B Key Features
- Silicon epitaxial planar chip structure
- Wide zener reverse voltage range 2.4V to 36V
- Very small package size for high density
UDZ12B Applications
- Ideally suited for automated assembly processes
